Section 35 (Air Bag System [Two-Step Deployment Control System])
>>
Air Bag System Location Index [Two-Step Deployment Control System]
Air Bag System Location Index [Two-Step Deployment Control System]
WARNING:
This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

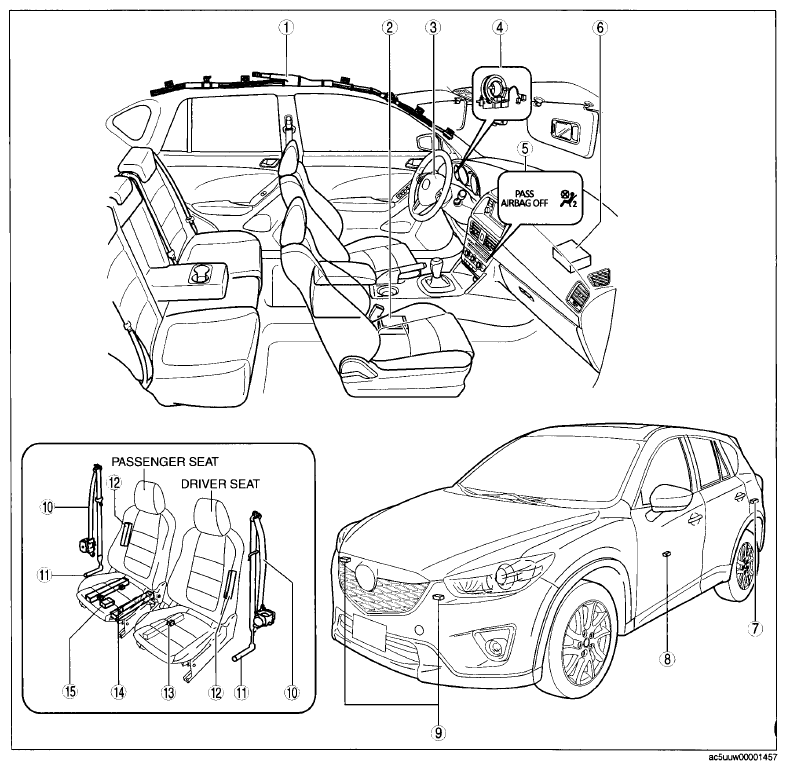

Fig 1: Air Bag System Components Location (1 Of 2)
Fig 2: Air Bag System Components Location (2 Of 2)
