Piston Disassembly Note

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the piston counter-clockwise using the SST  , remove the piston from the caliper body.

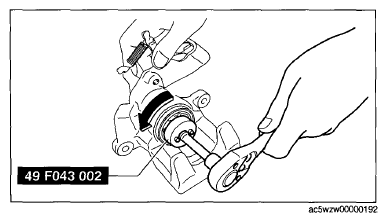

    Fig 1: Rotating Piston Counter Clockwise Using SST
    G09075224
