Front Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
    2. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Detach the tab and remove the front heat duct.

    LH

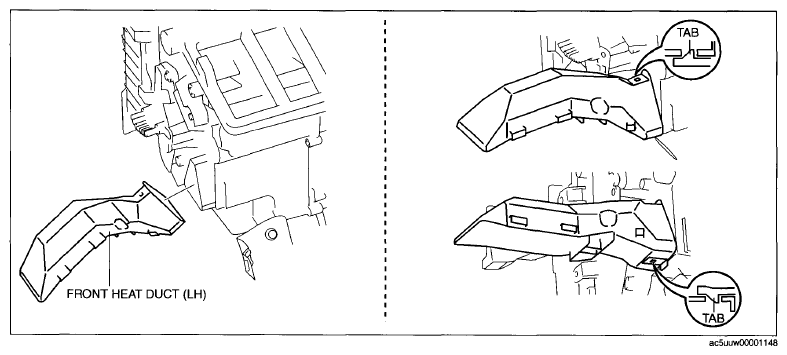

    Fig 1: Identifying Front Heat Duct (LH)
    G09075774

    RH

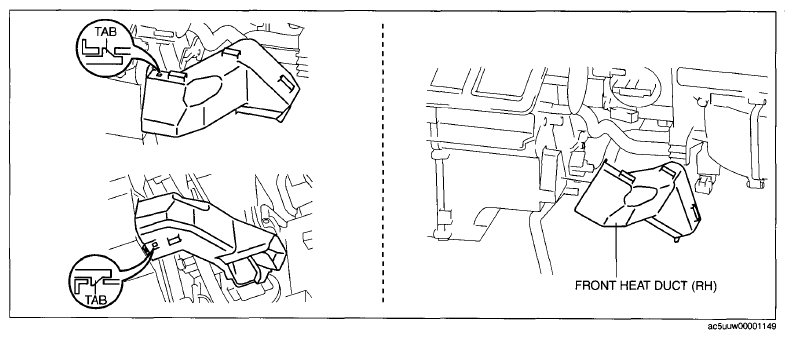

    Fig 2: Identifying Front Heat Duct (RH)
    G09075775
  4. Install in the reverse order of removal.
