CX-5 Touring, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Symptom Troubleshooting - Power Window Systems
>>
Power Window System Wiring Diagram
Power Window System Wiring Diagram

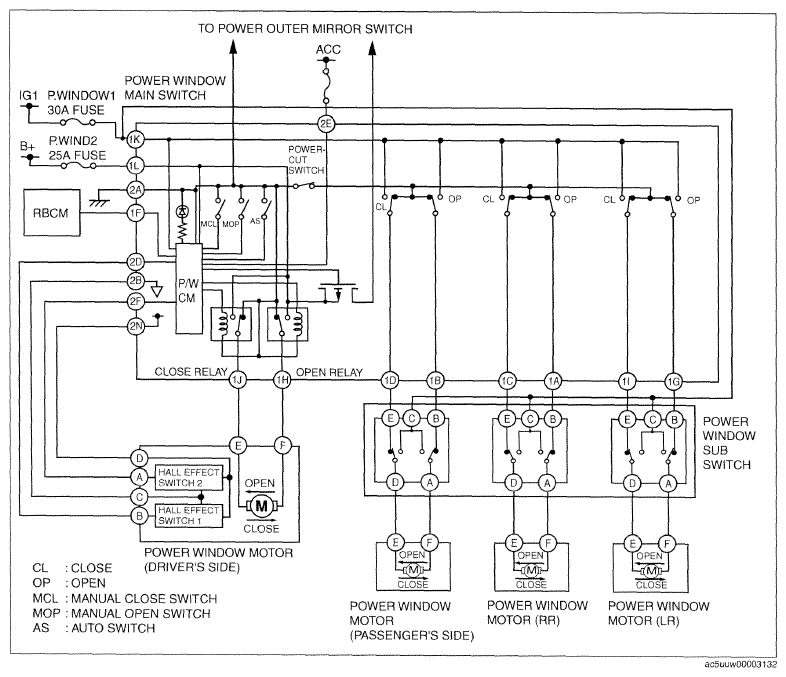

Fig 1: Power Window System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
