Start Stop Unit And LF Control Unit Connector End View

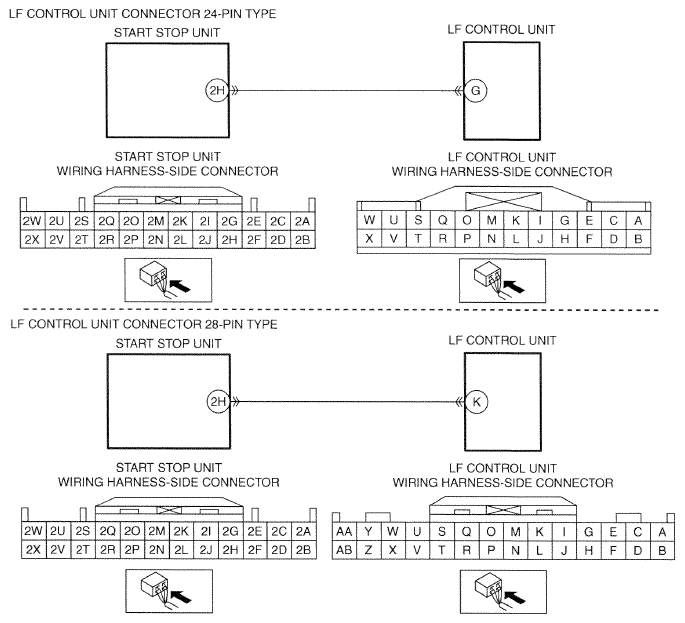

Fig 1: Start Stop Unit And LF Control Unit Connector End View

G09760412

Courtesy of MAZDA MOTORS CORP.
