Request Switch (Liftgate) And LF Control Unit Connector End View

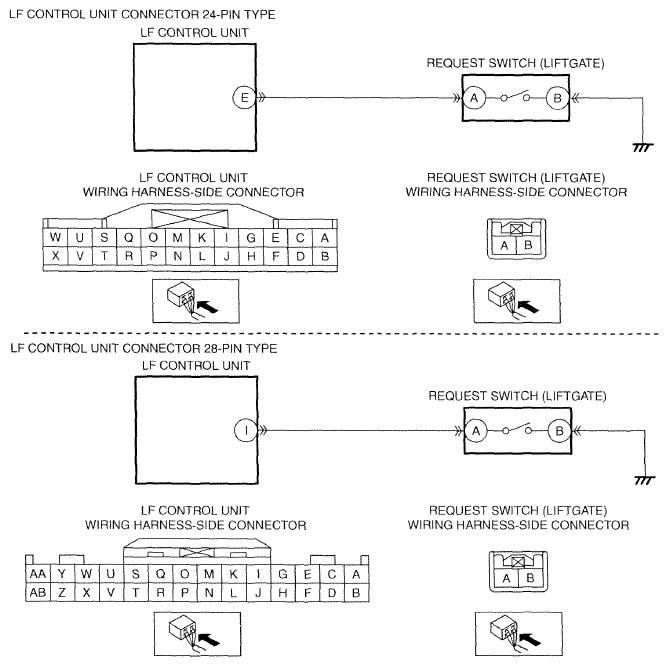

Fig 1: Request Switch (Liftgate) And LF Control Unit Connector End View

G09760409

Courtesy of MAZDA MOTORS CORP.
