Switch The Power Supply Using The Push Button Start And Start The Engine

The power supply switch using the push button start is performed by depressing the clutch pedal (MTX), depressing the brake pedal (ATX), and then pressing the push button start.

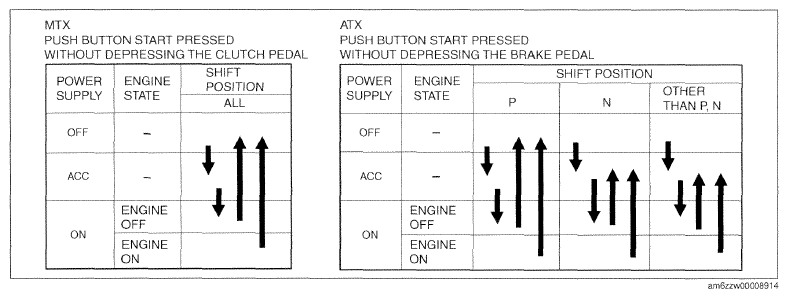

Fig 1: [Shift Position Diagram - Without Depressing Clutch Pedal]
Courtesy of MAZDA MOTORS CORP.
For engine starting using the push button start, depress the clutch pedal (MTX), depress the brake pedal (ATX), and then press the push button start.

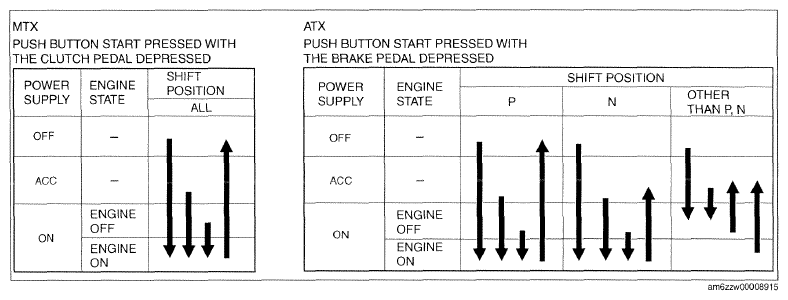

Fig 2: [Shift Position Diagram - With Depressing Clutch Pedal]
Courtesy of MAZDA MOTORS CORP.
