Troubleshooting Procedure

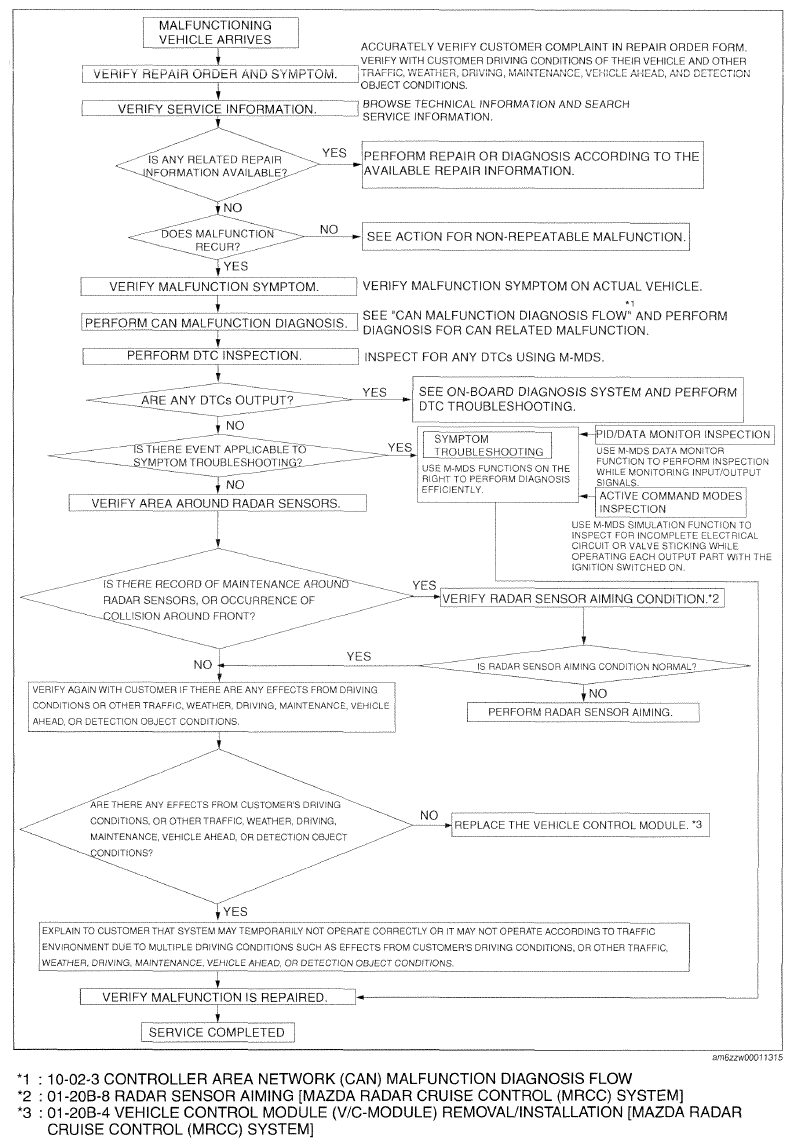

Fig 1: Troubleshooting Procedure Chart
G09786728Courtesy of MAZDA MOTORS CORP.
