6 Touring, 2.5L Eng VIN 5, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
On-Board Diagnostic [Vehicle Control Module (V/C Module)]
>>
On-Board Diagnostic Wiring Diagram [Vehicle Control Module (V/C-Module)]
On-Board Diagnostic Wiring Diagram [Vehicle Control Module (V/C-Module)]

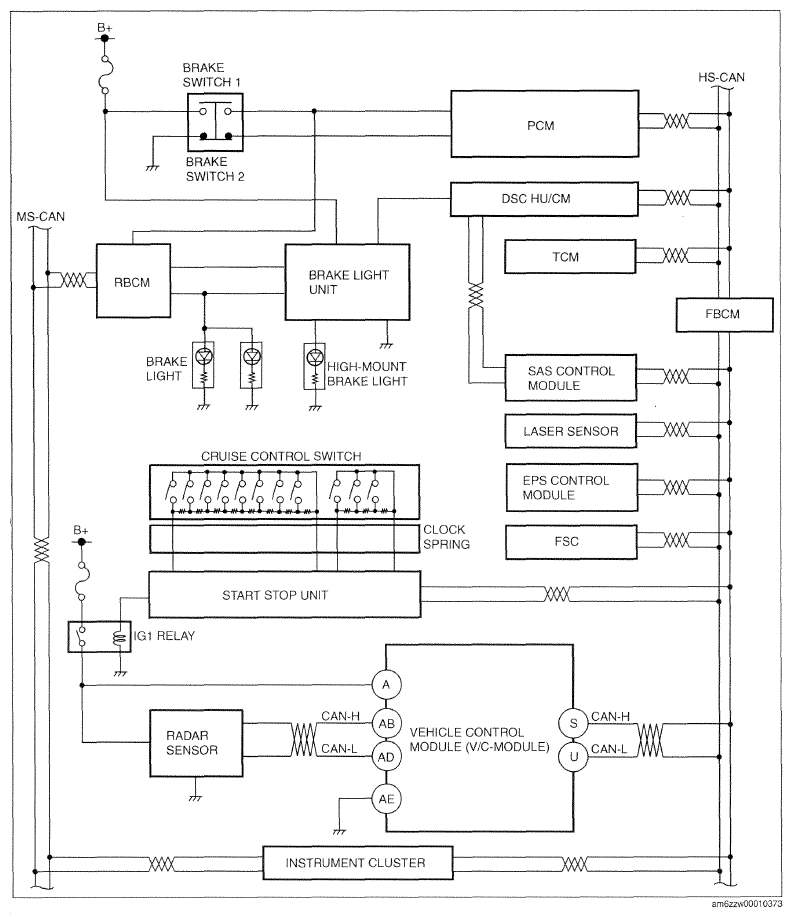

Fig 1: On-Board Diagnostic - Wiring Diagram (Vehicle Control Module)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
