On-Board Diagnostic [Two-Step Deployment Control System]
>>
Foreword [Two-Step Deployment Control System]
>>
Troubleshooting Procedure
Troubleshooting Procedure

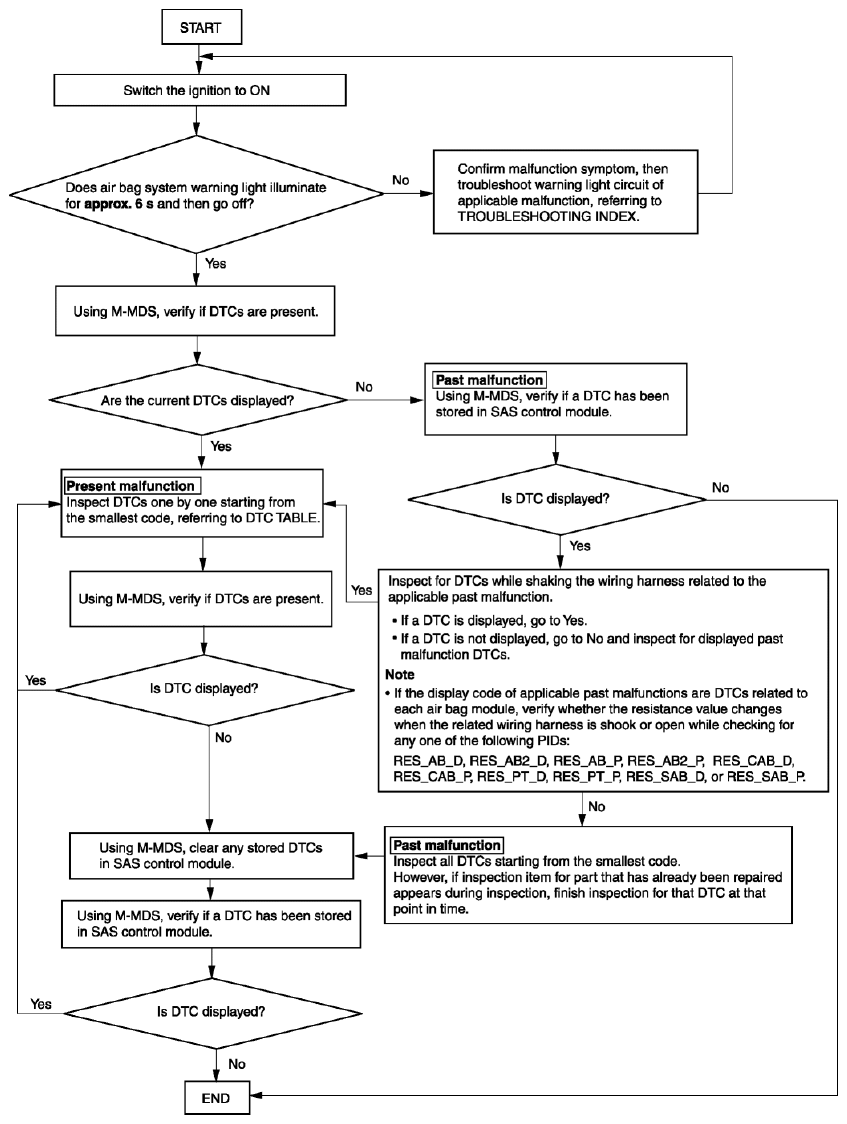

Fig 1: Troubleshooting Procedure Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
