Airflow mode main link installation note

CAUTION:
  • Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.
  1. Align the airflow mode main link hole with the airflow mode sub link projection as shown in the figure.

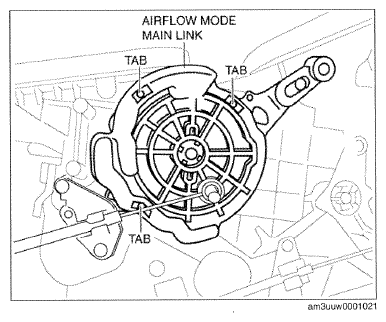

    Fig 1: Identifying Airflow Mode Main Link And Tab
    G09771353Courtesy of MAZDA MOTORS CORP.
  2. Press the airflow mode main link lightly to the A/C unit, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.
  3. Rotate airflow mode main link and verify that each mode is accessed properly.

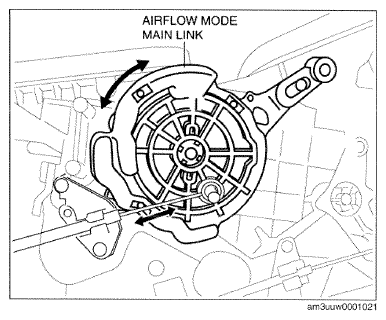

    Fig 2: Rotating Airflow Mode Main Link
    G09771354Courtesy of MAZDA MOTORS CORP.
