Mazda
>>
2015
>>
3 SV, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
System Wiring Schematics/Diagrams
>>
Transmission/Transaxle
>>
Automatic Transaxle
>>
Automatic Transaxle Shift Mechanism
>>
Shift-Lock System
Shift-Lock System

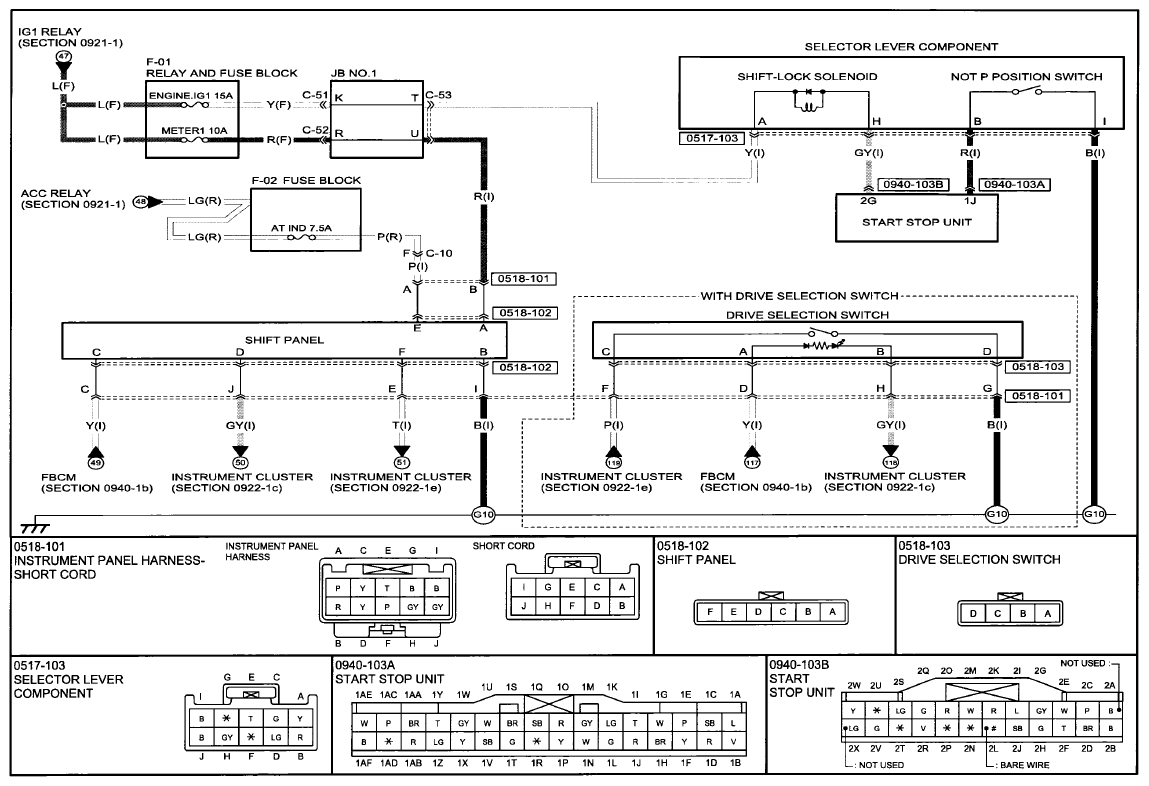

Fig 1: Shift-Lock System Communication Diagram (0517-1)
Courtesy of MAZDA MOTORS CORP.

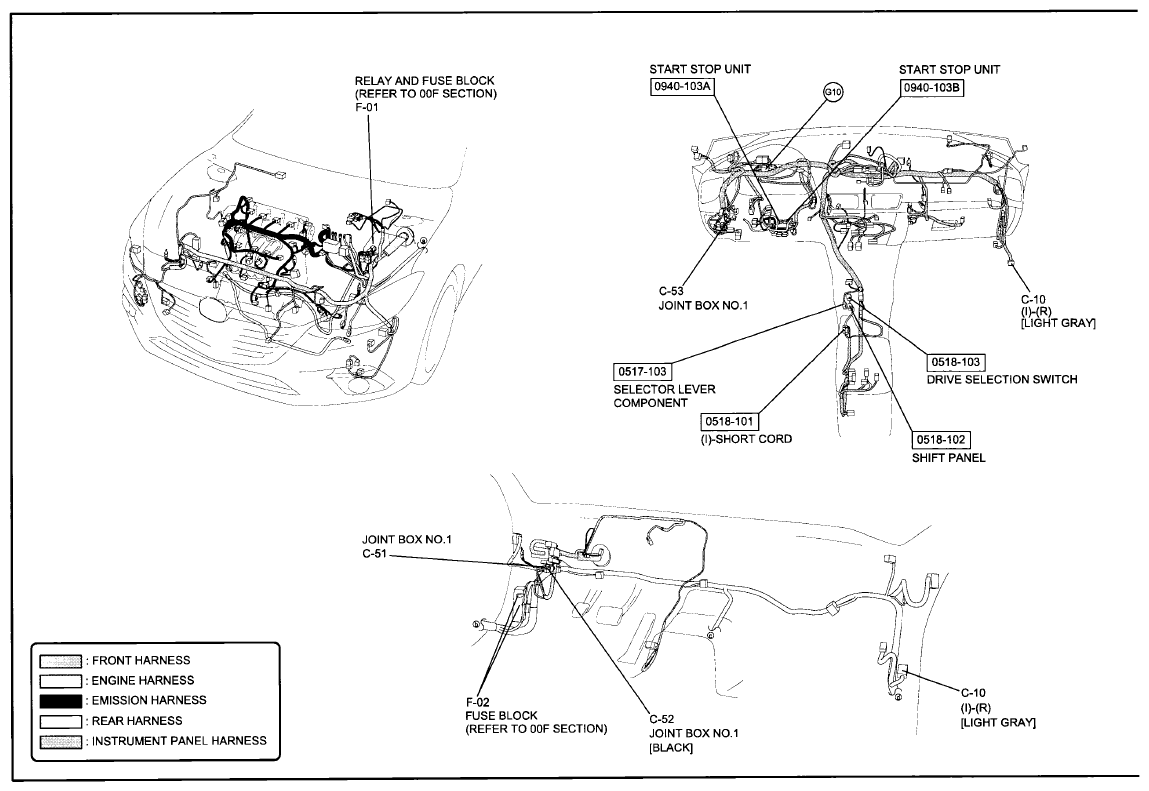

Fig 2: Shift-Lock System Connector Wiring Harness (0517-1)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
