AFS (Adaptive Front Light System)/Headlight Auto Leveling System

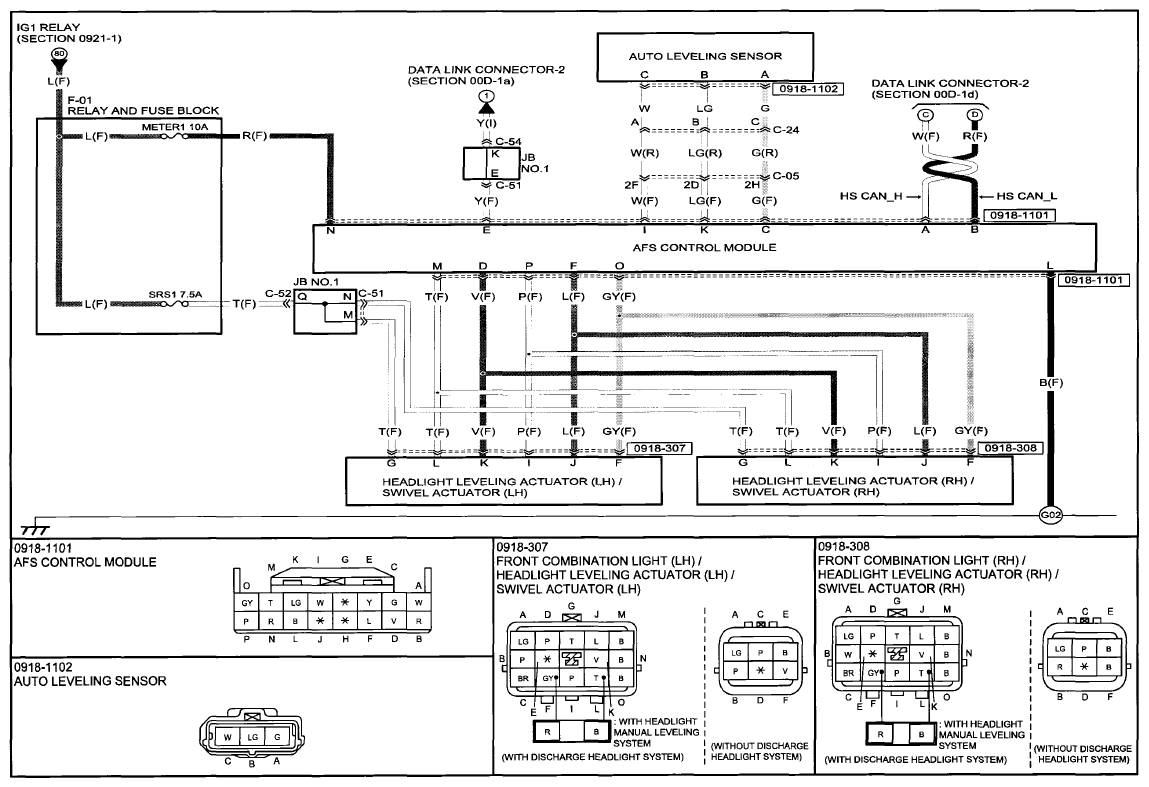

Fig 1: Adaptive Front Light System/Headlight Auto Leveling System Communication Diagram (0918-10)
G09756540Courtesy of MAZDA MOTORS CORP.

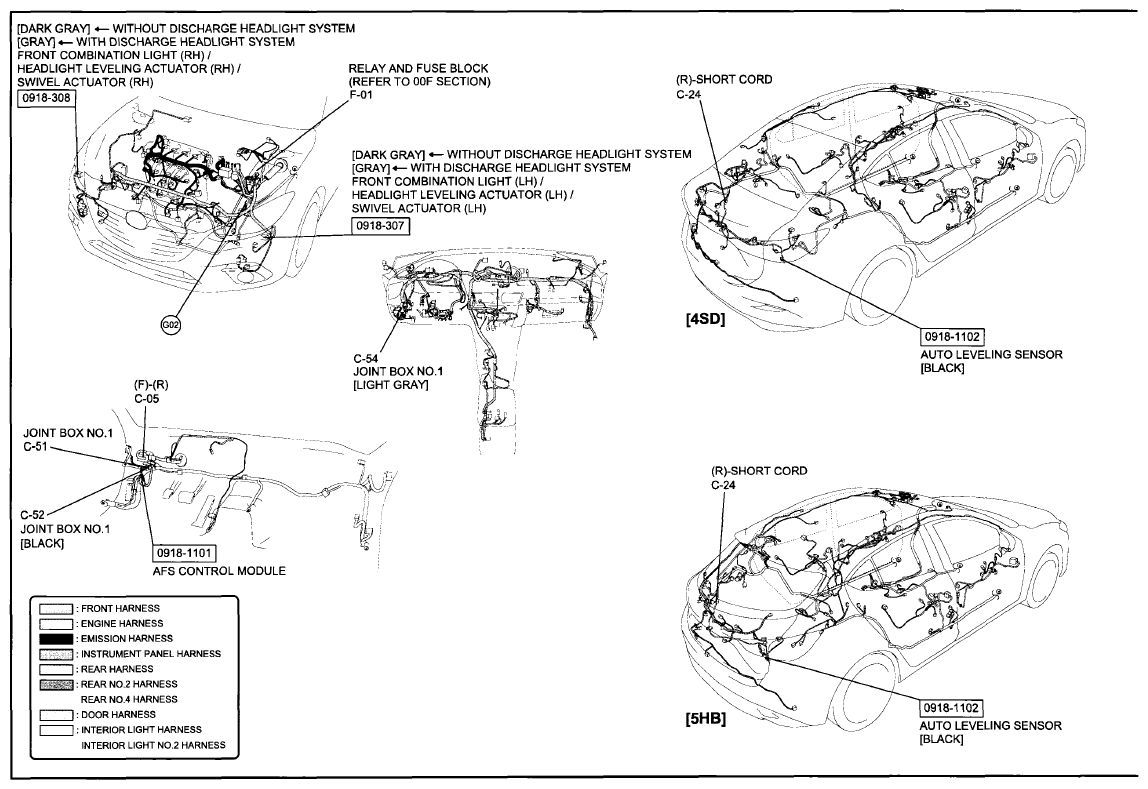

Fig 2: Adaptive Front Light System/Headlight Auto Leveling System Wiring Harness Connectors (0918-10)
G09756541Courtesy of MAZDA MOTORS CORP.
