DTC B112A [Advanced Keyless And Start System]: Notes

DTC B112A DETECTION CONDITION AND POSSIBLE CAUSE

DTC B112A	Keyless antenna (INSTRUMENT PANEL)
DETECTION CONDITION	Keyless antenna dose not operated.

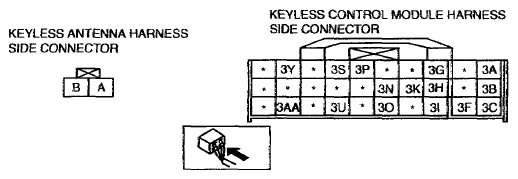

POSSIBLE CAUSE	Keyless antenna (INSTRUMENT PANEL) malfunction Open or short circuit in wiring harness between keyless control module and keyless antenna Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
