Steering Lock Mounting Bolts Installation Note

  1. Assemble the steering lock component to the steering shaft
  2. Verify that the lock operates correctly.
  3. Install new steering lock mounting bolts.
  4. Tighten the bolts until the heads break off.

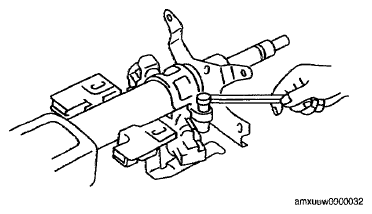

    Fig 1: Installing Steering Lock Mounting Bolts
    G06150541Courtesy of MAZDA MOTORS CORP.
