Keyless System Connector End View
Keyless System Connector End View

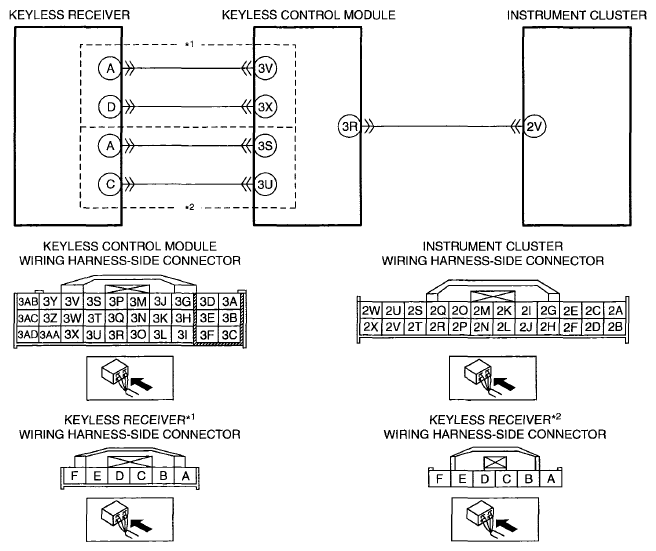

Fig 1: Keyless System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
