DTC C0089: 64 TCS Off Switch: Notes
DTC C0089:64 (DSC) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C0089:64 |
TCS OFF switch |
| DETECTION CONDITION |
- Continuous ON signal from the TCS OFF switch for 10 s or more
is detected.
|
| FAIL-SAFE FUNCTION |
- Permits the control and does not illuminate each warning/indicator light.
|
| POSSIBLE CAUSE |
- The driver pressed and held the TCS OFF switch for 10 s or more.

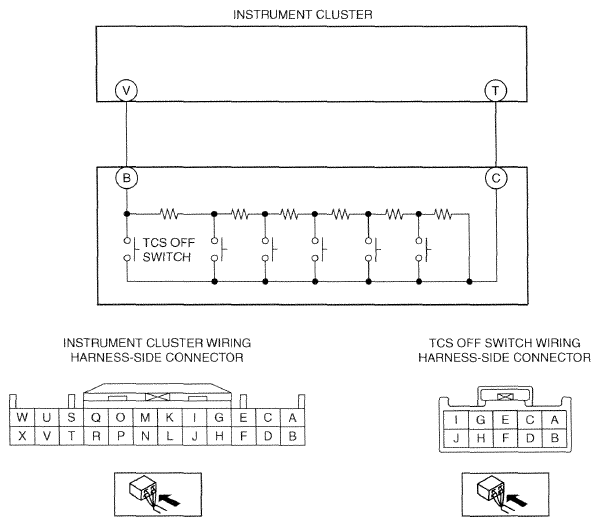

- Short to ground in the wiring harness between the instrument cluster terminal V and TCS OFF switch terminal B
- Open circuit in wiring harness between instrument cluster terminal T and TCS OFF switch terminal C
- TCS OFF switch malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
