DTC C0061: 28/C0061:64/C0062:28/C0062:64/C0063:28/C0063:64 SAS Control Module System: Notes

DTC C0061:28/C0061:64 DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C0061:28, C0061:64, C0062:28, C0062:64, C0063:28, C0063:64	SAS control module system
DETECTION CONDITION	NOTE: The low-G sensor and the yaw rate sensor are built into the SAS control module. C0061:28, C0061:64 Out-of-specification signal modulation or lateral-G value is detected from the low-G sensor. C0062:28, C0062:64 Out-of-specification signal modulation or longitudinal-G value is detected from the low-G sensor. C0063:28, C0063:64 Out-of-specification signal modulation or yaw rate value is detected from the yaw rate sensor.
FAIL-SAFE FUNCTION	C0061:28, C0061:64, C0063:28, C0063:64 Illuminates the TCS/DSC indicator light and master warning light^1 . Tire pressure monitoring system warning light illuminates after flashes. Inhibits the TCS, DSC, roll over mitigation (ROM), TPMS, and smart city brake support (SCBS)^1 controls. C0062:28, C0062:64 Illuminates the ABS warning light^2 , TCS/DSC indicator light, and master warning light^12 . Inhibits the ABS^3 , TCS^3 , DSC^3 , roil over mitigation (ROM)^3 , brake assist control^3 , vehicle roll prevention function^4 , hill launch assist (HLA), and smart city brake support (SCBS)^13 controls. ^1 : Vehicles with smart city brake support (SCBS) ^2 : Not illuminated depending on malfunction content. ^3 : Enabled depending on malfunction content. ^*4 : ATX only

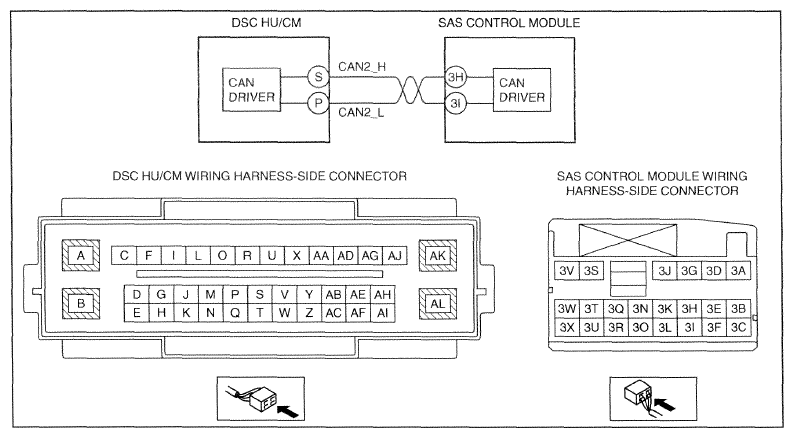

POSSIBLE CAUSE	SAS control module malfunction Open or short circuit in the CAN2_H wiring harness between DSC HU/CM terminal S and SAS control module terminal 3H Open or short circuit in the CAN2_L wiring harness between DSC HU/CM terminal P and SAS control module terminal 3I DSC HU/CM malfunction Poor connection at connectors (female terminal)
Courtesy of MAZDA MOTORS CORP.
