Liftgate Opener Switch Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    4. Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
    5. Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)
  3. Verify the continuity of liftgate opener switch terminals B and C.
    • If not as indicated in the table, replace the liftgate opener switch.
      Fig 1: Continuity Reference Chart
      G09077058Courtesy of MAZDA MOTORS CORP.

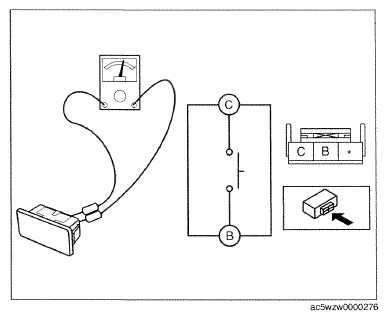

      Fig 2: Checking Continuity Of Liftgate Opener Switch Terminals B And C
      G09761451Courtesy of MAZDA MOTORS CORP.
