Power Window Main Switch, Power Window Subswitch And Lock Switch Removal Note

  1. Pull the edge of power window main switch or subswitch cover in the direction of arrow (1) and detach tabs.

    Driver-side

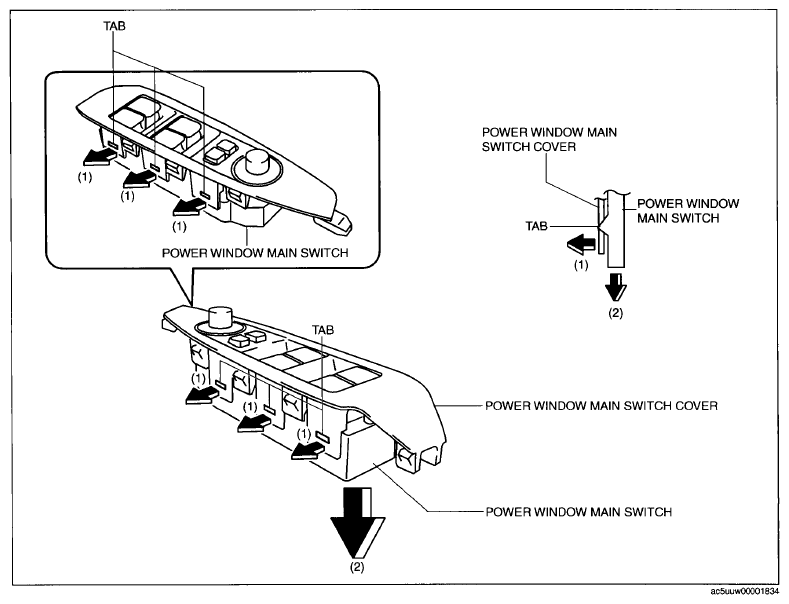

    Fig 1: Pulling Power Window Main Switch (Driver-Side)
    G09077285Courtesy of MAZDA MOTORS CORP.

    Passenger-side

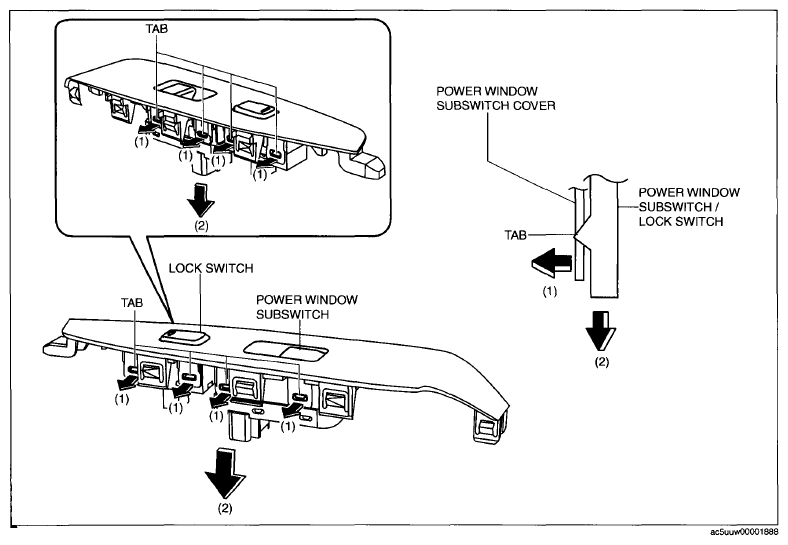

    Fig 2: Pulling Power Window Main Switch (Passenger-Side)
    G09077286Courtesy of MAZDA MOTORS CORP.
  2. Remove the power window main switch, power window subswitch or lock switch in the direction of arrow (2) shown in the figure.
