Automatic Transaxle Shift Mechanism Location Index

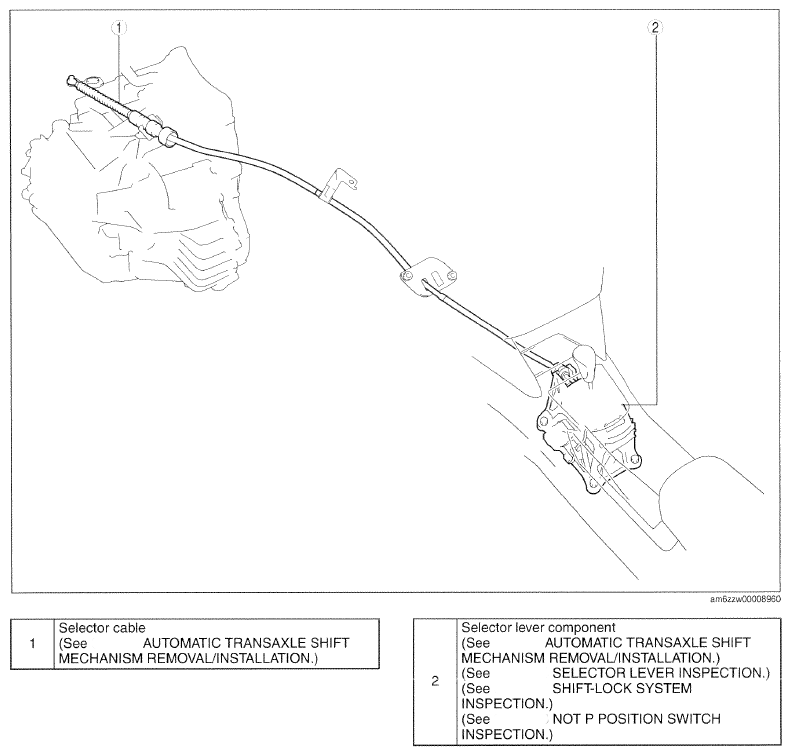

Fig 1: Automatic Transaxle Shift Mechanism Components Location

G09786227

Courtesy of MAZDA MOTORS CORP.
