Symptom Troubleshooting - Engine Controls
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

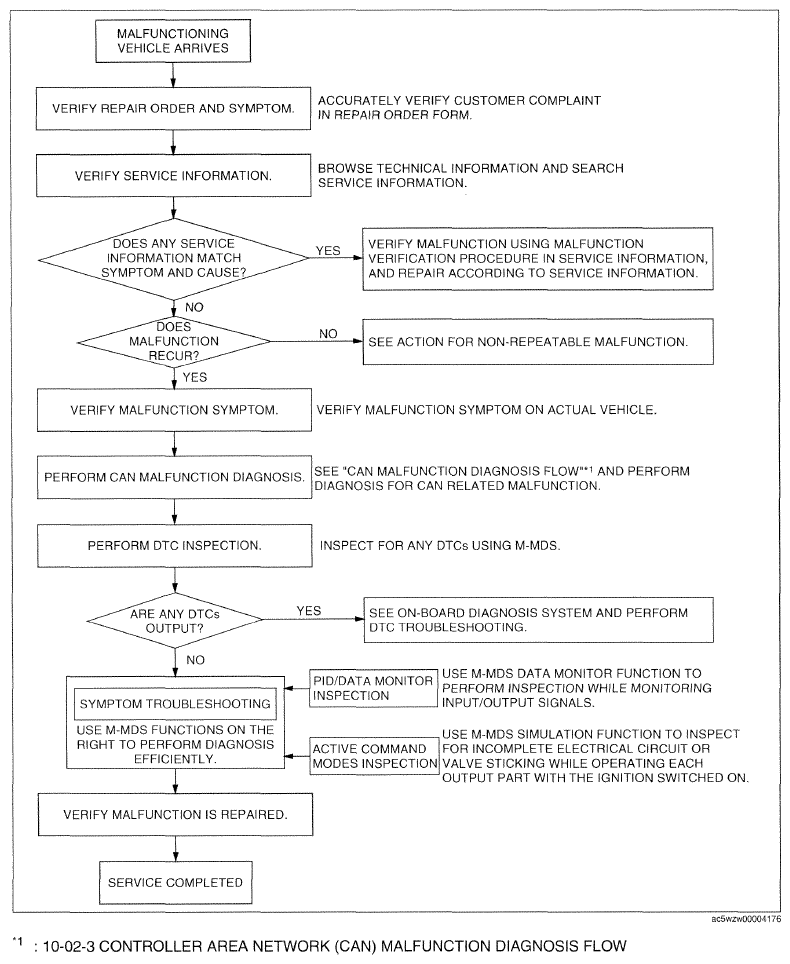

Fig 1: Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
