6 Touring, 2.5L Eng VIN 5, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Symptom Troubleshooting - Power Window Systems (With Auto-Open/Close Function For Drive-Side)
>>
Power Window System Wiring Diagram [Power Window Systems (With Auto-Open/Close Function For Driver-Side)]
Power Window System Wiring Diagram [Power Window Systems (With Auto-Open/Close Function For Driver-Side)]

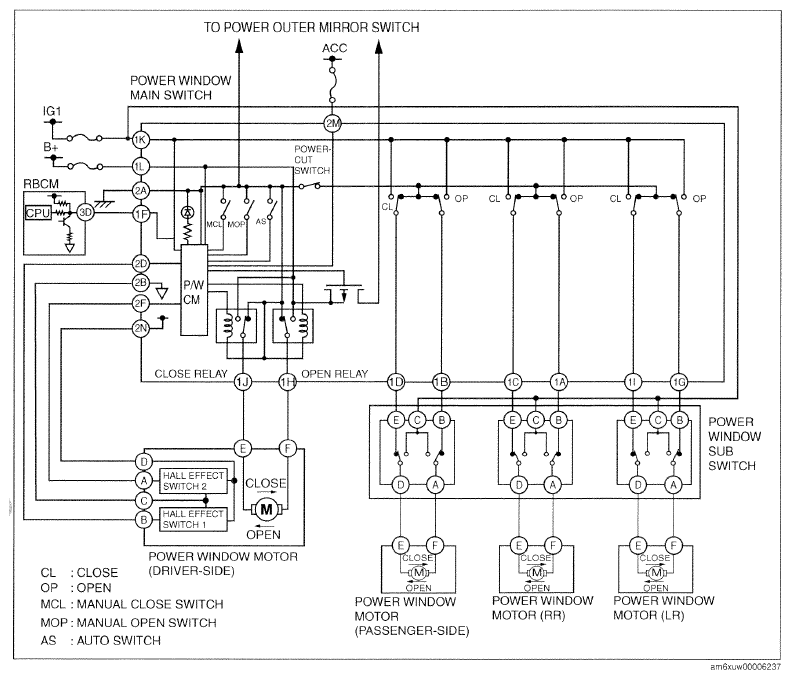

Fig 1: Power Window System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
