Power Window Main Switch

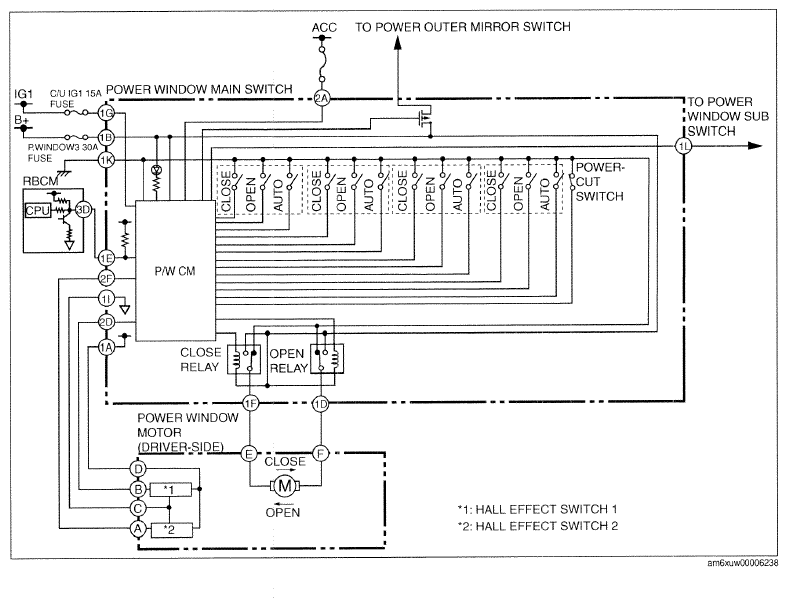

Fig 1: Power Window System - Wiring Diagram - Main Switch
G09787354Courtesy of MAZDA MOTORS CORP.
