Pressure Control Solenoid A (-)

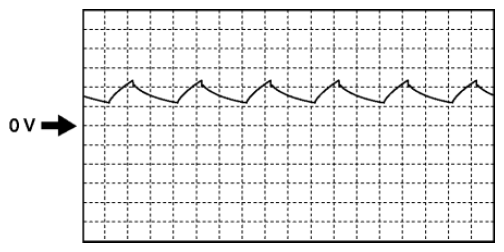

Fig 1: Pressure Control Solenoid A (-) Oscilloscope Waveform

Courtesy of MAZDA MOTORS CORP.

Terminal:
AE (+)-GND (-)
Oscilloscope setting:
200 mV/DIV (Y), 1 ms/DIV (X), DC range
Measurement condition:
When all of the following conditions are met:
- Ignition switched ON (engine off)
- P position
- Accelerator pedal fully depressed
