Home >> Mazda >> 2014 >> 5 Touring >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Lubrication System Location Index

Lubrication System Location Index

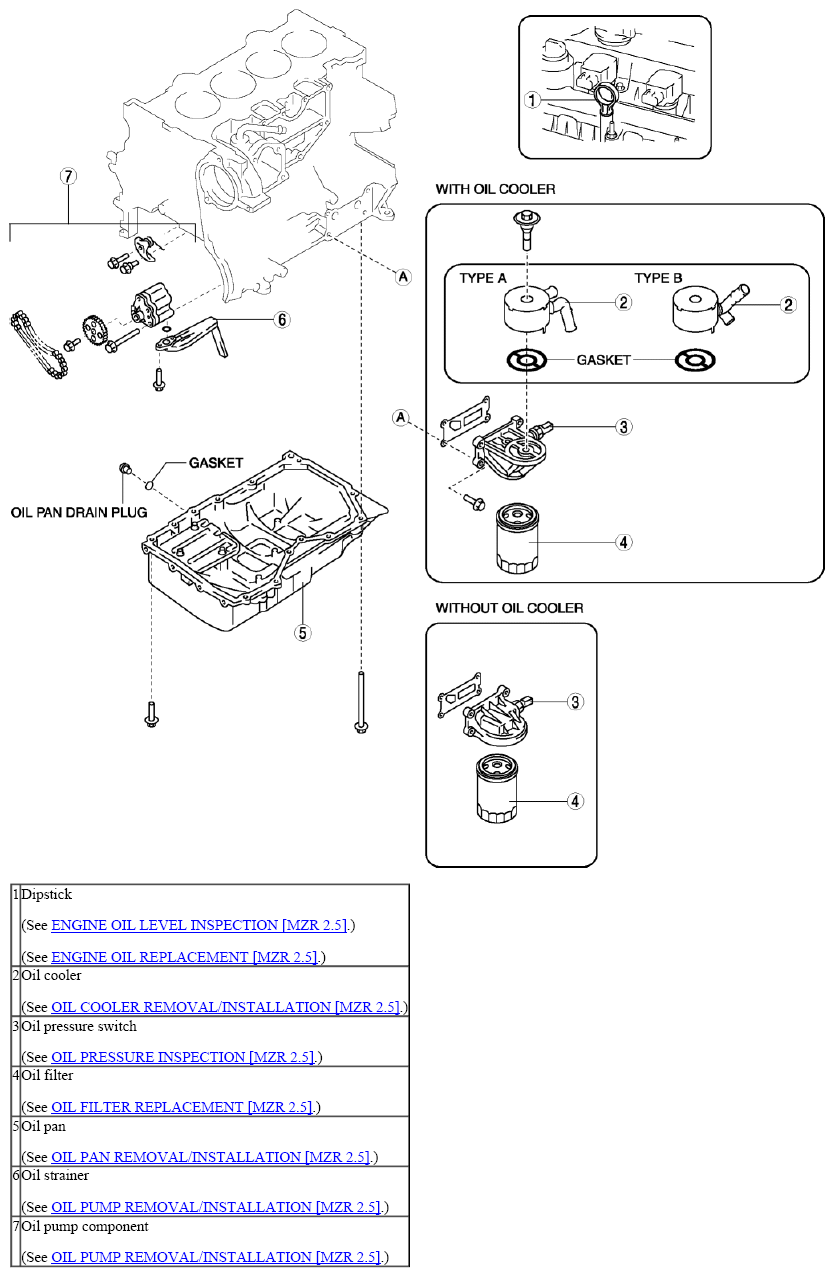

Fig 1: Identifying Lubrication System Component Locations

G08150092

Courtesy of MAZDA MOTORS CORP.
