Bearing outer race, shim, Transaxle case component assembly note

  1. Assemble the bearing outer race to the secondary shaft component.

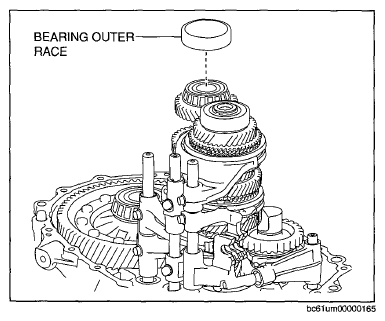

    Fig 1: Identifying Bearing Outer Race
    G08347963
  2. Assemble the shims.
    Fig 2: Identifying Bearing Outer Race Shims
    G08347964
  3. Apply silicone sealant to the transaxle case component as shown in the figure.
    Fig 3: Identifying Transaxle Case Component Silicone Sealant
    G08347965
  4. Assemble the transaxle case component.
    CAUTION:
    • Assemble the transaxle case component before the applied silicone sealant starts to harden.
    Fig 4: Transaxle Case Bolts With Torque Specifications
    G08347946
