Clutch Hub Assembly Note

  1. Assemble the clutch hub to the position shown in the figure while rotating the clutch hub in the rotation direction.
    Fig 1: Rotating Clutch Hub In Rotation Direction
    G08347882
    CAUTION:
    • When assembling the clutch hub, it is necessary to engage the synchronizer ring projection, round groove of the clutch hub, and grooves of the friction damper and clutch hub. Therefore, rotate the clutch hub and engage it with each part.

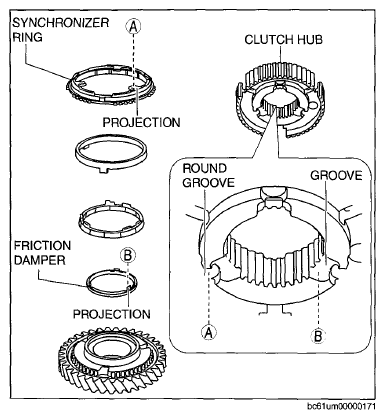

    Fig 2: Identifying Synchronizer Ring Projection, Round Groove Of Clutch Hub And Grooves Of Friction Damper And Clutch Hub
    G08347883
