Adjuster Anchor Cover Removal Note

  1. Press the adjuster anchor cover in the directions of arrows (1) shown in the figure and pull it in the direction of arrow (2).

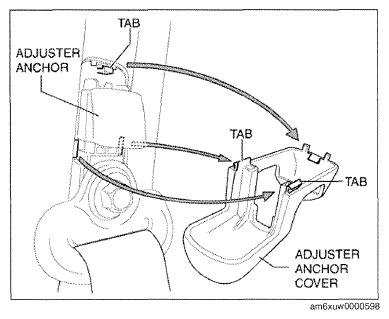

    Fig 1: Identifying Adjuster Anchor, Cover And Tab
    G09771713Courtesy of MAZDA MOTORS CORP.

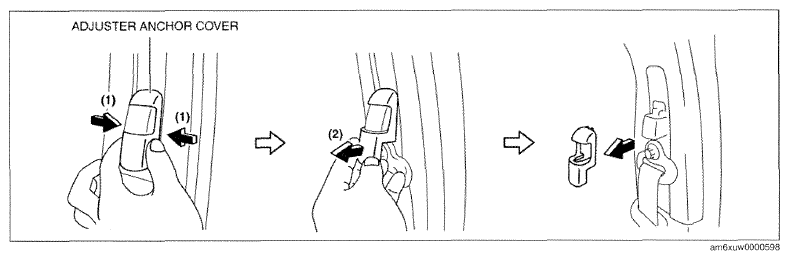

    Fig 2: Removing Adjuster Anchor Cover
    G09771714Courtesy of MAZDA MOTORS CORP.
  2. Remove the adjuster anchor cover.
