Tuner And Amp Unit Connector End View

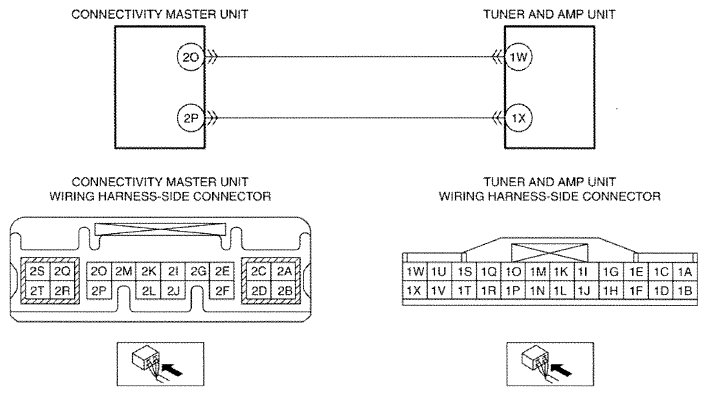

Fig 1: Tuner And Amp Unit Connector End View
G09783568Courtesy of MAZDA MOTORS CORP.

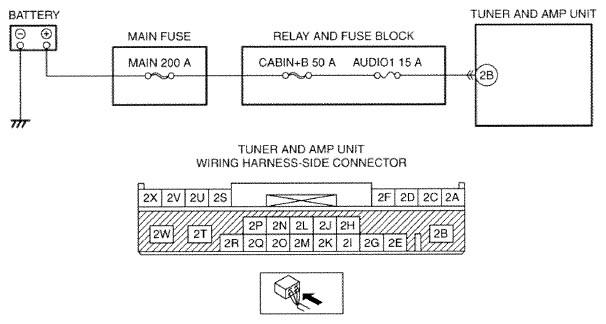

Fig 1: Tuner And Amp Unit Connector End View
G09783567Courtesy of MAZDA MOTORS CORP.
