Start Stop Unit And IG1 Relay Connector End View

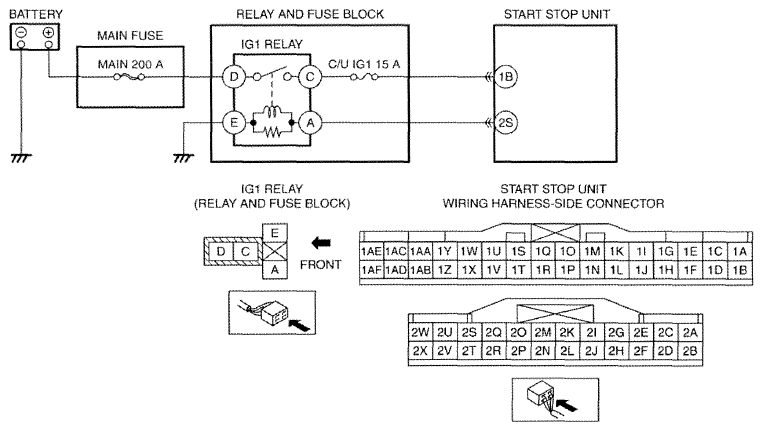

Fig 1: Start Stop Unit And IG1 Relay Connector End View

G09771859

Courtesy of MAZDA MOTORS CORP.
