CD Player And Tuner And Amp Unit Connector End View

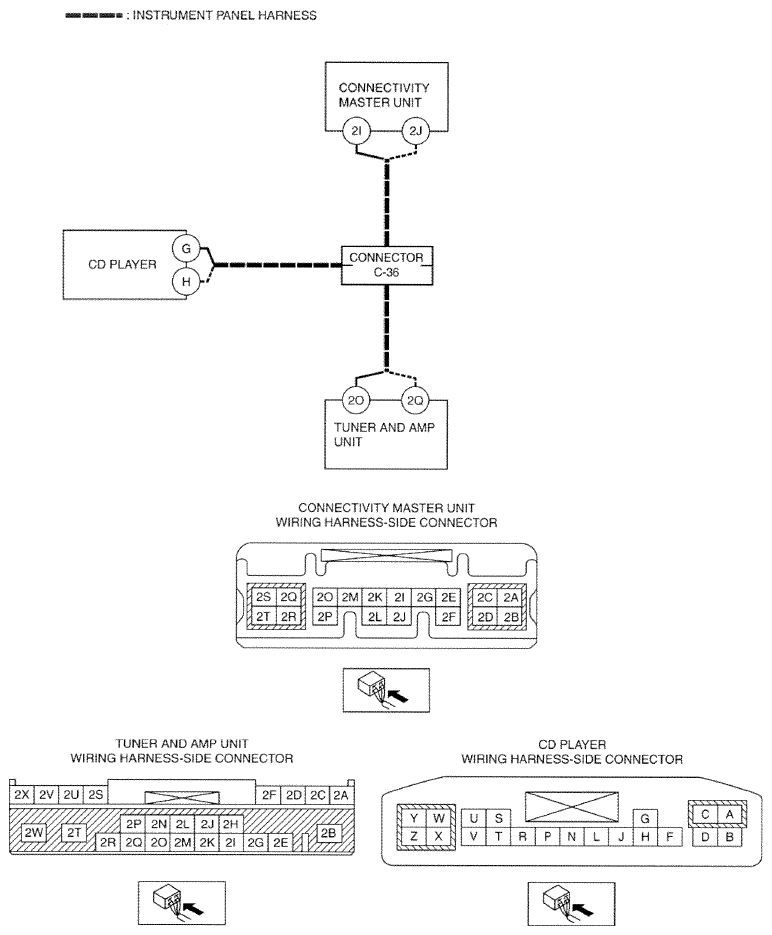

Fig 1: CD Player And Tuner And Amp Unit Connector End View

G09783574

Courtesy of MAZDA MOTORS CORP.
