Airflow Mode Actuator And Climate Control Unit Connector End View

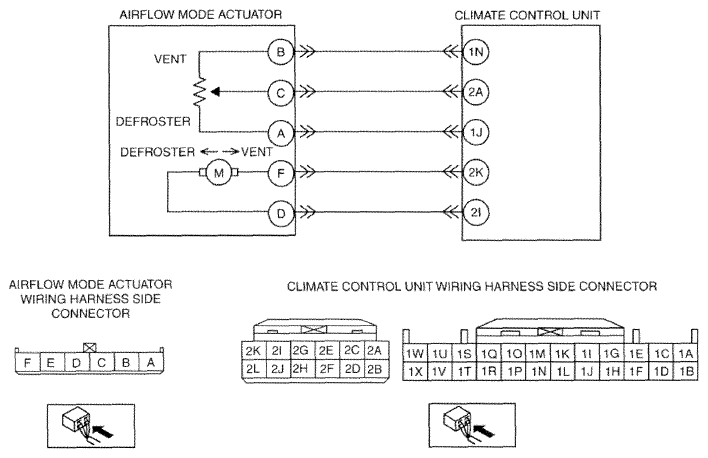

Fig 1: Airflow Mode Actuator And Climate Control Unit Connector End View

G09771297

Courtesy of MAZDA MOTORS CORP.
