Drain Hose Installation Note

  1. Install the clip as shown in the figure.

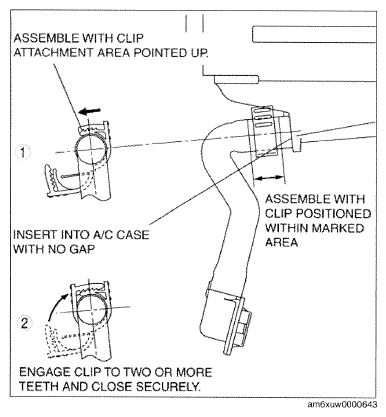

    Fig 1: Installing A/C Unit Drain Hose
    G09771343Courtesy of MAZDA MOTORS CORP.
