DTC U3003 16/U3003 17/U3003 1C: Power Supply System: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC U3003:16/U3003:17/U3003:1C (DYNAMIC STABILITY CONTROL) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
U3003:16/U3003:17/U3003:1C |
Power supply system |
| DETECTION CONDITION |
- U3003:16
- The vehicle speed exceeds 3 km/h {2 mph}
and the voltage at DSC HU/CM terminal AG is less than 10 V
.
- U3003:17
- The voltage at DSC HU/CM terminal AG is 16 V or more
.
- U3003:1C
- Low ignition voltage (10 V or less)
is detected at the voltage monitor of the solenoid valve or motor monitor.
- The ABS wheel speed sensor power supply for all four wheels decreases for a continuous 60 s with the voltage at DSC HU/CM terminal AG is 10 V or less
.
|
| FAIL-SAFE FUNCTION |
- Illuminates the ABS warning light, brake system warning light, TCS/DSC indicator light, and master warning light*.
- Tire pressure monitoring system warning light illuminates after flashes.
- Inhibits all of controls.
*: Vehicles with Smart City Brake Support (SCBS). |
| POSSIBLE CAUSE |
- Malfunction of fuse (ABS/DSC M 50A or ABS/DSC S 30A)

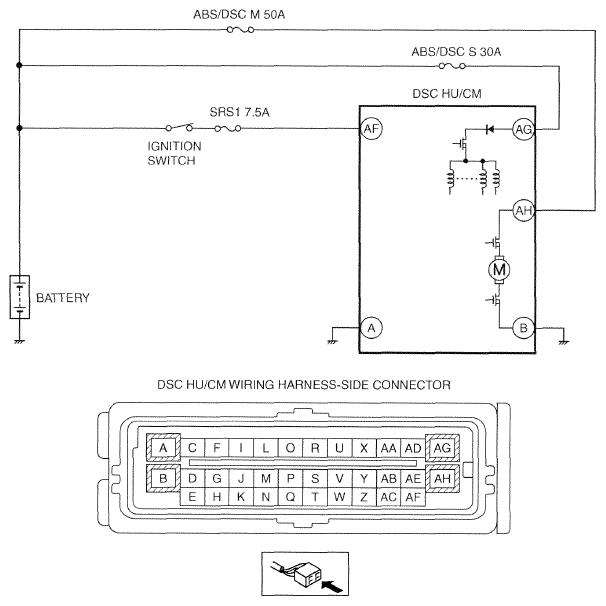

- Open or short circuit in wiring harness between DSC HU/CM terminal AG and battery
- Open circuit in wiring harness between DSC HU/CM terminal A and body ground
- Battery deterioration
- Generator malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
