DTC B10D3 23: Request Switch (RF) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B10D3:23 (ADVANCED KEYLESS ENTRY SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Request switch (RF) circuit malfunction |
| Detection condition |
- Start stop unit detected any of the following conditions at a vehicle speed of 5 km/h {3 mph} or more
.
- The request switch (RF) is continuously ON for 2 min or more
.
- The request switch (RF) was ON 7 times
before the vehicle speed decreased to less than 5 km/h {3 mph}
.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front outer handle (RH) connector or terminal malfunction
- LF control unit connector or terminal malfunction

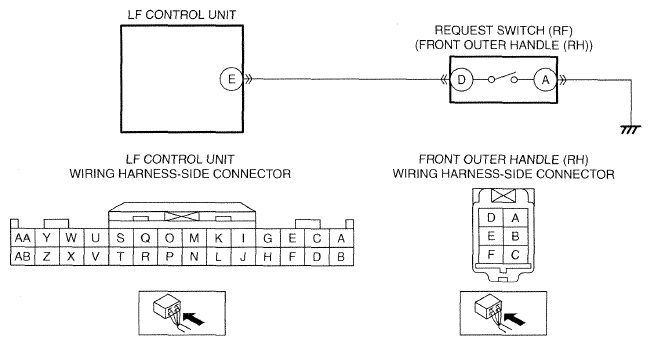

- Short to ground in wiring harness between LF control unit terminal E and front outer handle (RH) terminal D
- Request switch (RF) malfunction
- LF control unit malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
