Sunroof Switch Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the sunroof switch terminals is as indicated in the table.
- If not as indicated in the table, replace the sunroof switch.

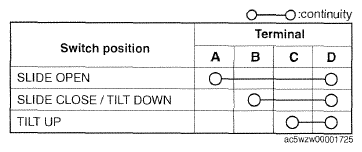

  Fig 1: Sunroof Switch Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.

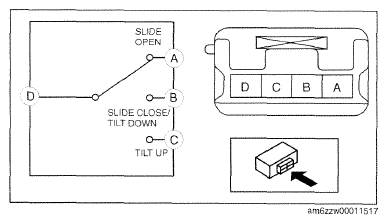

  Fig 2: Sunroof Switch Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
