Intermediate Shaft Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment marks on the new intermediate shaft in the same positions as the removed intermediate shaft.

Fig 1: Placing Alignment Marks On Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.

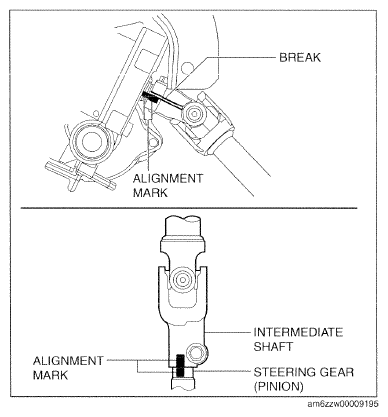

Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.

Fig 2: Aligning Alignment Marks On Steering Column And Steering Gear (Pinion)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install joint bolt B, then joint bolt A.
Fig 3: Identifying Intermediate Shaft Joint Bolt A And B
Courtesy of MAZDA MOTORS CORP.
Verify that the joint bolt B flange is seated in the specified position.

Fig 4: Intermediate Shaft Joint Bolt B With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Verify that joint bolt A is installed to the groove of the steering gear (pinion).

Fig 5: Intermediate Shaft Joint Bolt A With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
