Shift-Lock System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

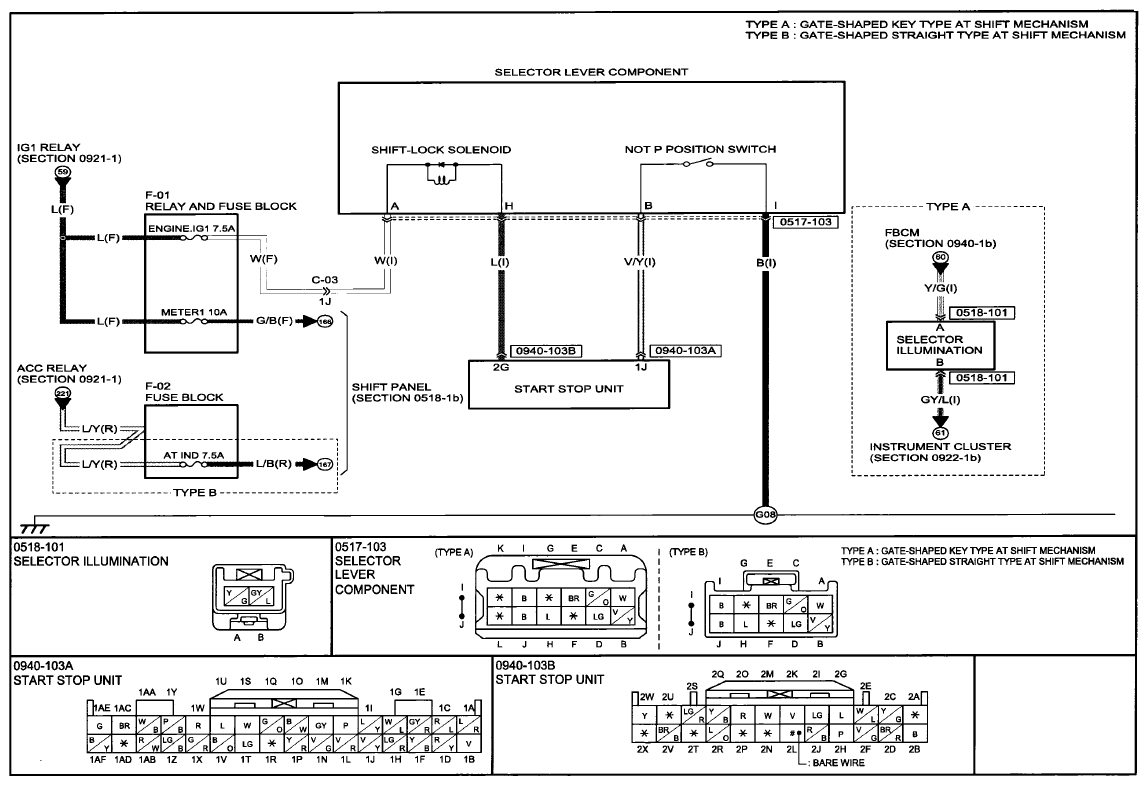

Fig 1: Shift-Lock System Communication Diagram (0518-1A)

Courtesy of MAZDA MOTORS CORP.

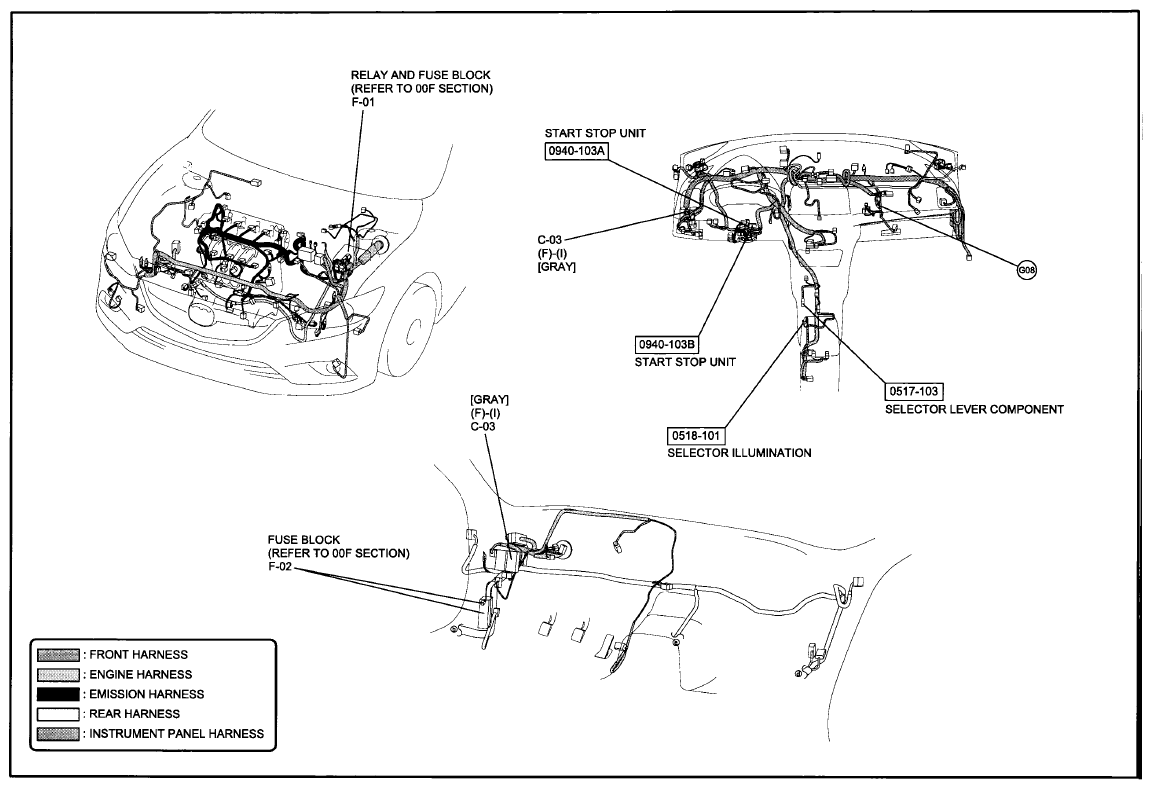

Fig 2: Shift-Lock System Wiring Harness Connectors (0518-1A)

Courtesy of MAZDA MOTORS CORP.

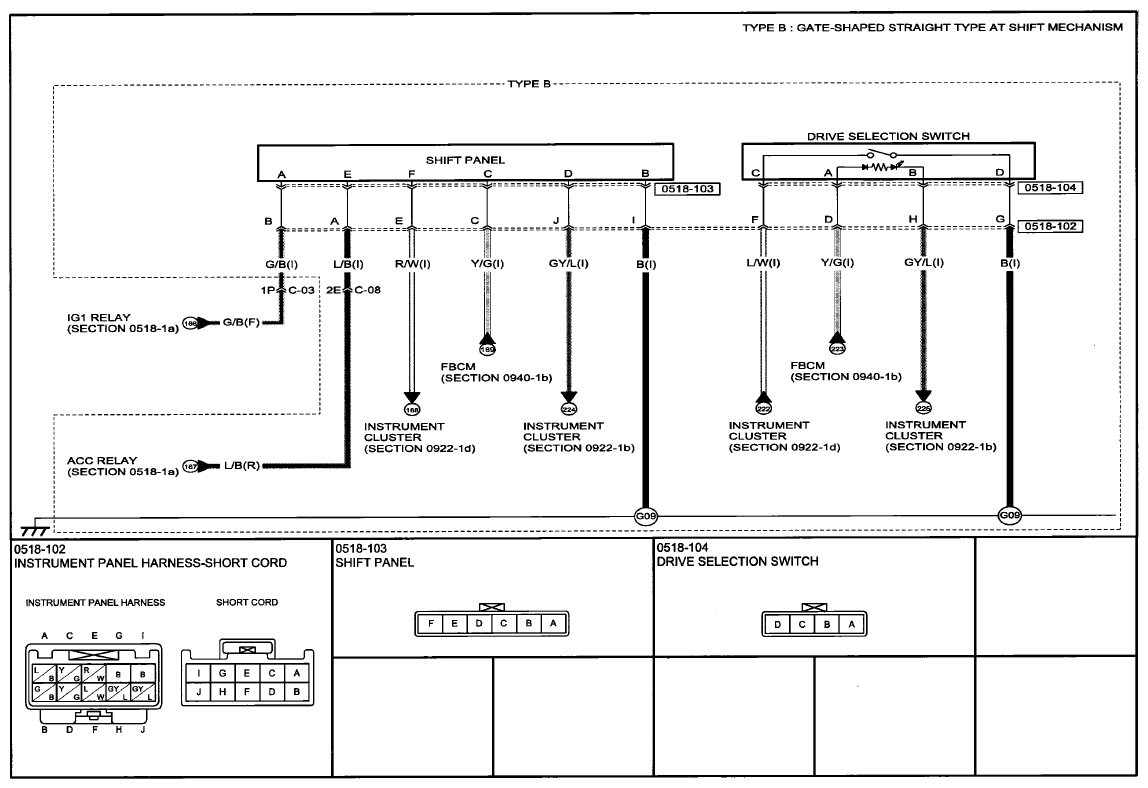

Fig 3: Shift-Lock System Communication Diagram (0518-1B)

Courtesy of MAZDA MOTORS CORP.

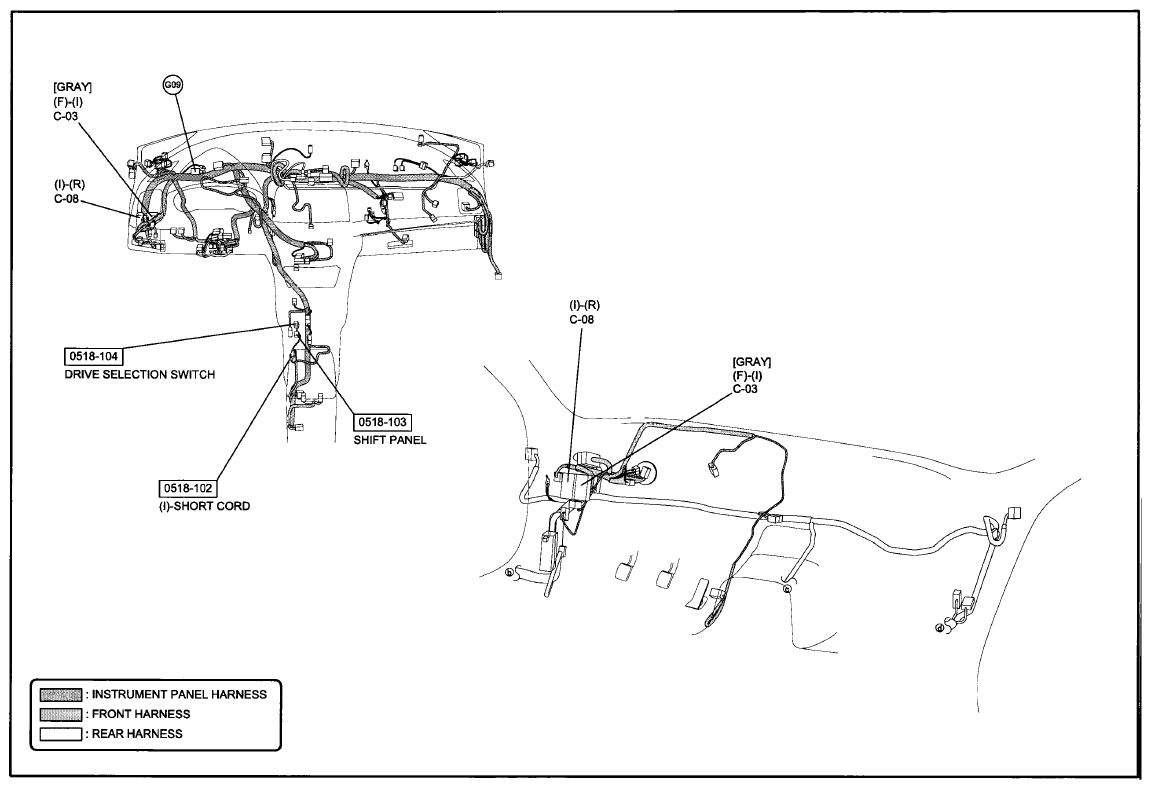

Fig 4: Shift-Lock System Wiring Harness Connectors (0518-1B)

Courtesy of MAZDA MOTORS CORP.
