System Wiring Diagram [Laser Sensor]

Fig 1: On-Board Diagnostic System - Wiring Diagram (Laser Sensor; 1 Of 2)
G09783047Courtesy of MAZDA MOTORS CORP.

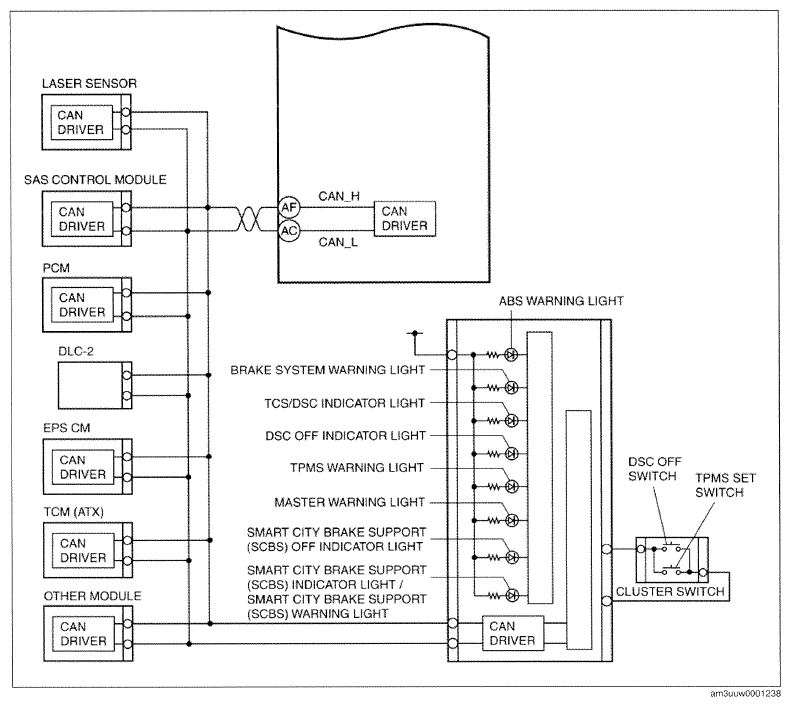

Fig 2: On-Board Diagnostic System - Wiring Diagram (Laser Sensor; 2 Of 2)
G09783048Courtesy of MAZDA MOTORS CORP.
