Rear Window Defroster System Inspection
>>
With Manual Air Conditioner System
>>
System wiring diagram
System wiring diagram

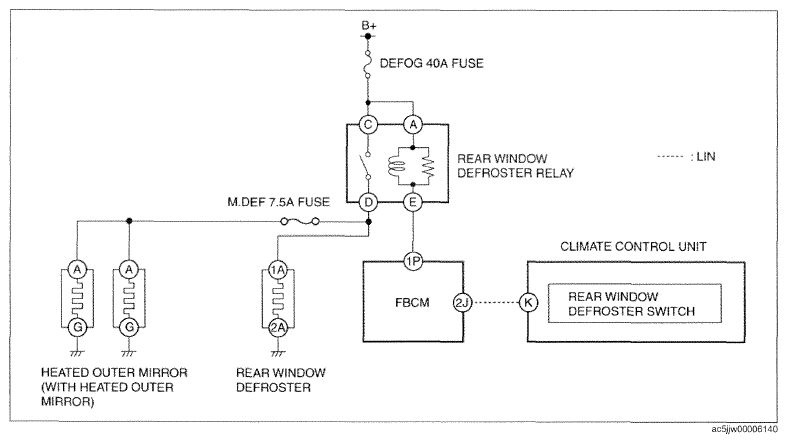

Fig 1: Rear Window Defroster System - Wiring Diagram (With Manual Air Conditioner System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
