Home >> Mazda >> 2014 >> 3 SV, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security And Lock System >> Security And Locks Location Index >> Locks and Openers

Locks and Openers

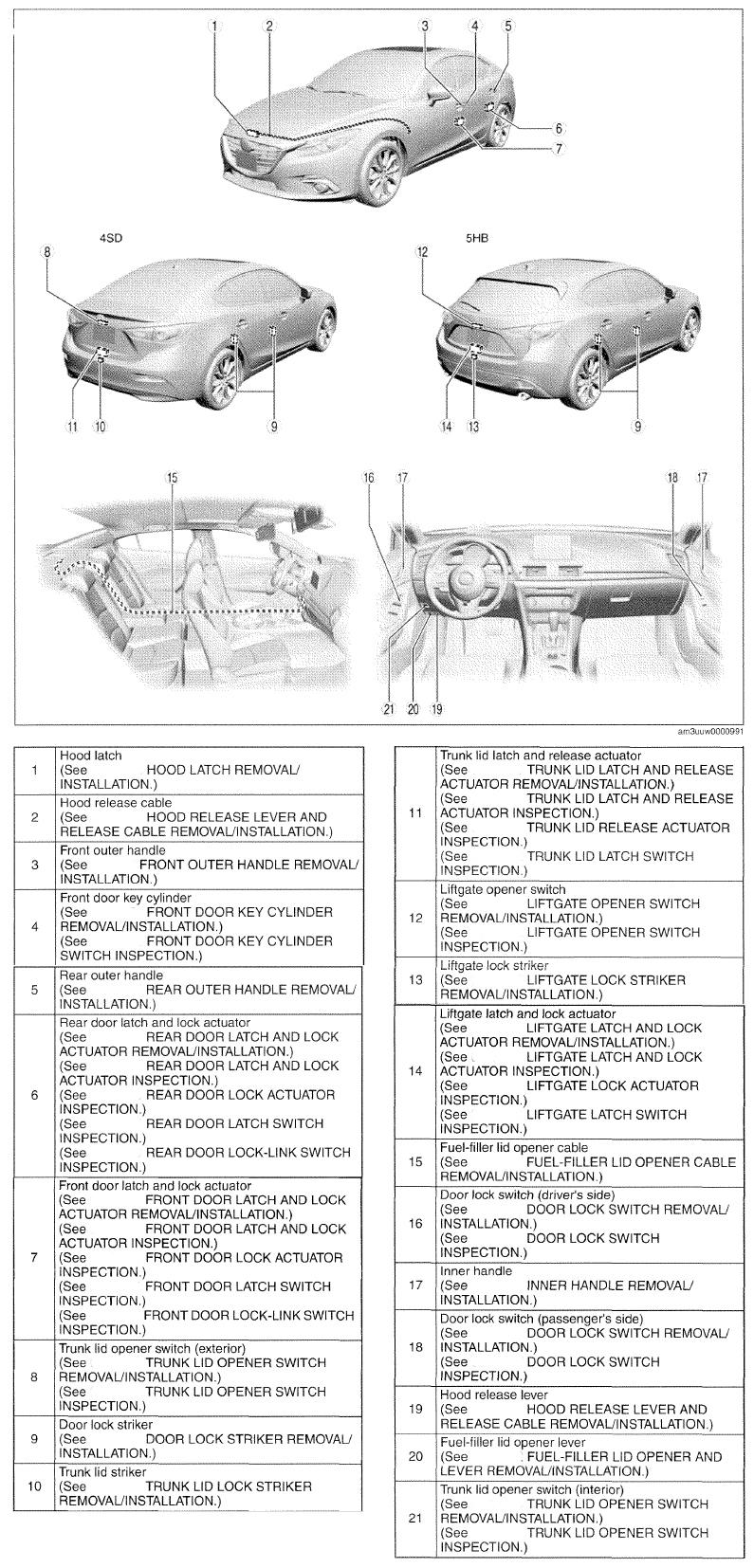

Fig 1: Security And Locks Components Location

G09771894

Courtesy of MAZDA MOTORS CORP.
