Washer Motor Removal/Installation

NOTE:
  • If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

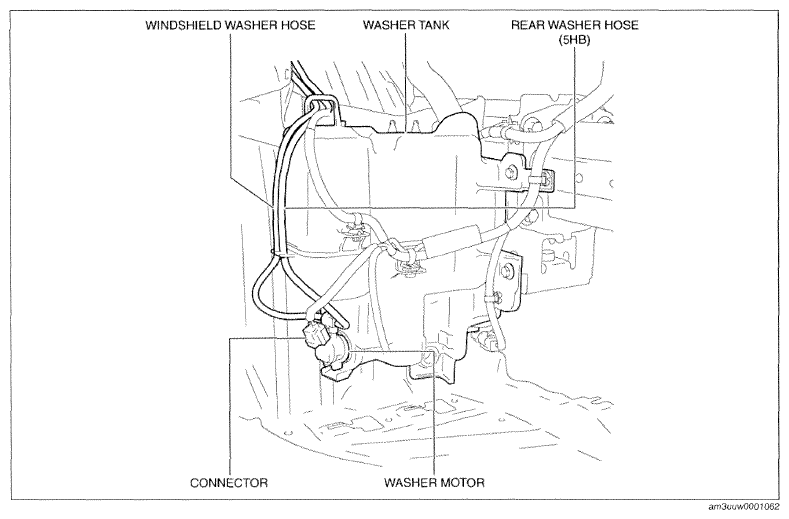

    Fig 1: Removing Washer Motor
    G09784083Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the washer hose from the washer motor.
  6. Remove the washer motor in the direction of arrow (2) shown in the figure while moving it in the direction of arrow (1) shown in the figure.

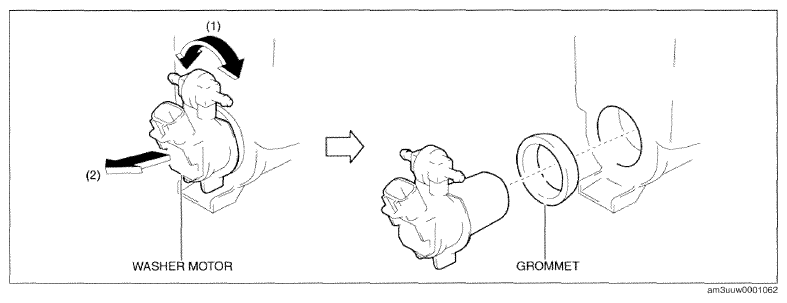

    Fig 2: Removing Washer Motor
    G09784084Courtesy of MAZDA MOTORS CORP.
  7. Remove the grommet.
  8. Install in the reverse order of removal.
