Power Window System Wiring Diagram [Power Window System]
>>
Soft-top Model
Soft-top Model

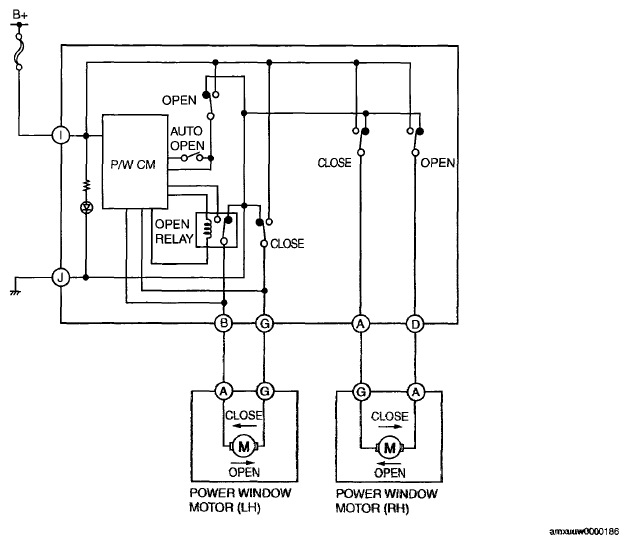

Fig 1: Power Window System Wiring Diagram - Soft-Top Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
