Intermediate Shaft Installation Note

Place alignment marks on the new intermediate shaft in the same positions as the removed intermediate shaft.

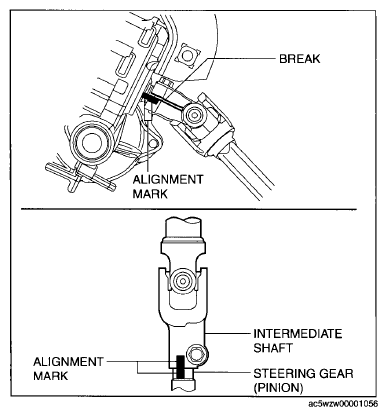

Fig 1: Placing Alignment Marks On Intermediate Shaft In Same Positions
Align the alignment marks on the steering column and the steering gear (pinion), which were placed before removing the intermediate shaft, and install the intermediate shaft.

Fig 2: Aligning Alignment Marks On Steering Column And Steering Gear (Pinion)
NOTE:
- Install joint bolt B, then joint bolt A.
Fig 3: Identifying Intermediate Shaft Joint Bolt (A And B)
Verify that the joint bolt B flange is seated in the specified position.

Fig 4: Joint Bolt B Flange Seated Position With Torque Specifications
Verify that joint bolt A is installed to the groove of the steering gear (pinion).

Fig 5: Steering Gear (Pinion) Joint Bolt Position With Torque Specifications
