Power Window System Connector End View (0912-5b)

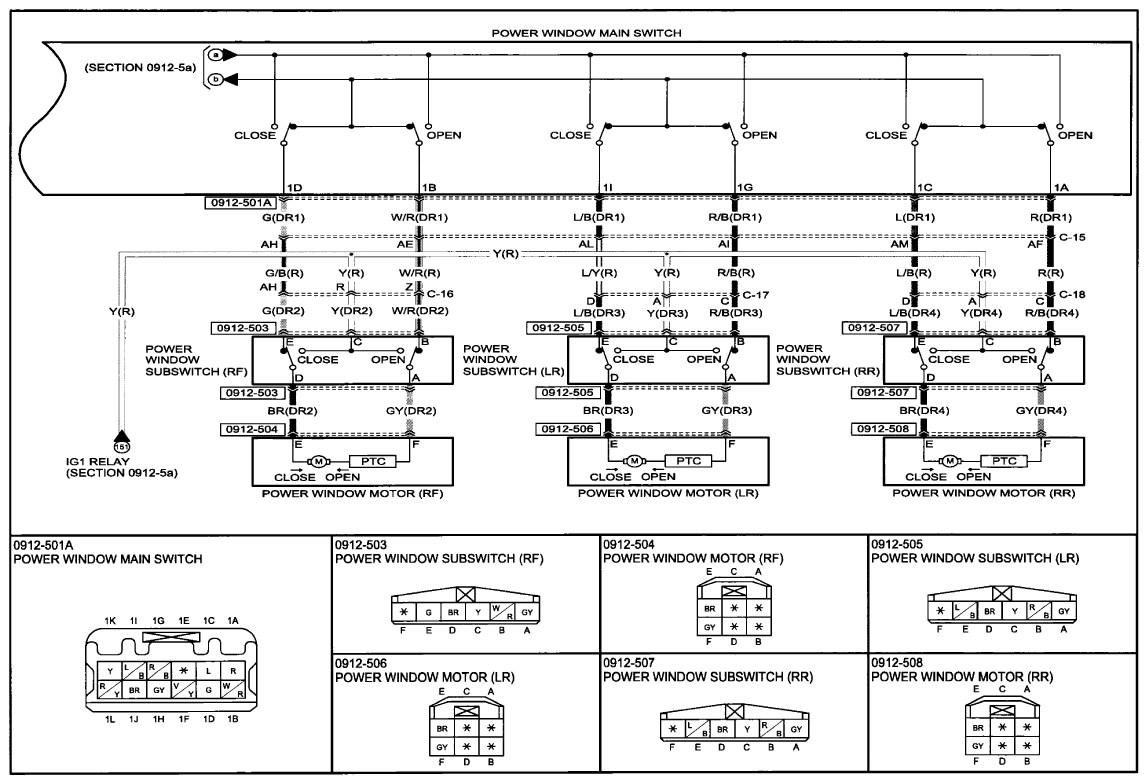

Fig 1: Power Window System Connector End View (0912-5b)

G09120271

Courtesy of MAZDA MOTORS CORP.
