Power System Connector End View (0921-1)

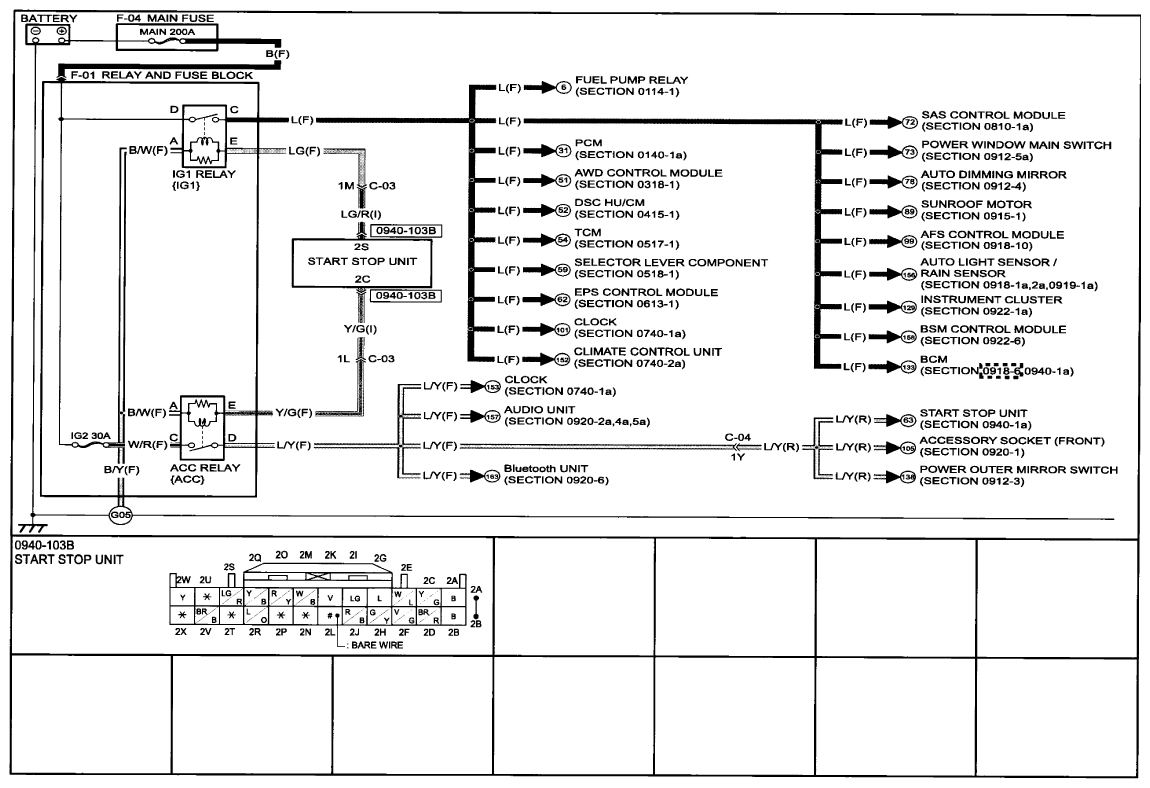

Fig 1: Power System Connector End View (0921-1)

G09120349

Courtesy of MAZDA MOTORS CORP.
