Passenger-Side Buckle Switch Connector End View

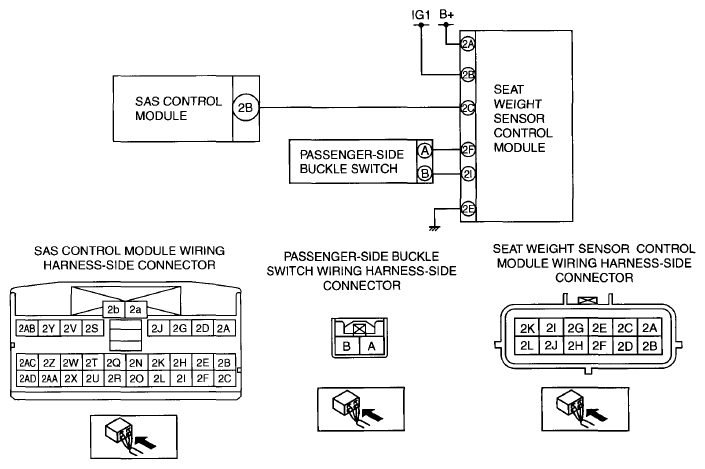

Fig 1: Passenger-Side Buckle Switch Connector End View

G09075997

Courtesy of MAZDA MOTORS CORP.
