Passenger-Side Air Bag Module Connector End View

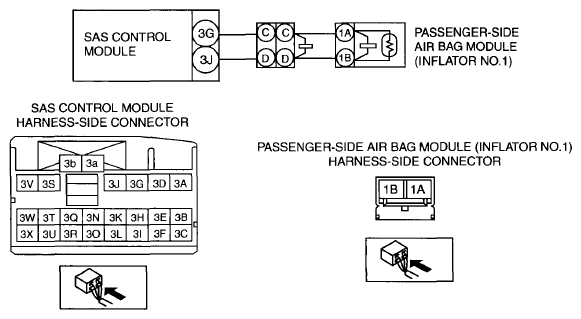

Fig 1: Passenger-Side Air Bag Module Connector End View
G09075995Courtesy of MAZDA MOTORS CORP.

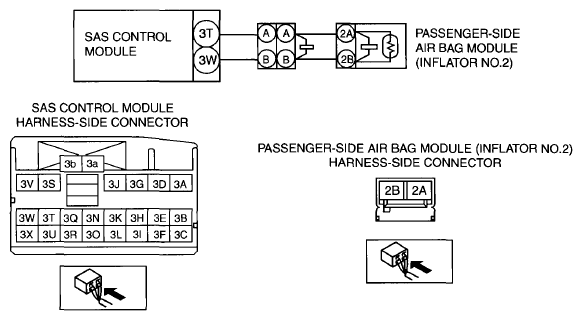

Fig 1: Passenger-Side Air Bag Module Connector End View
G09075996Courtesy of MAZDA MOTORS CORP.

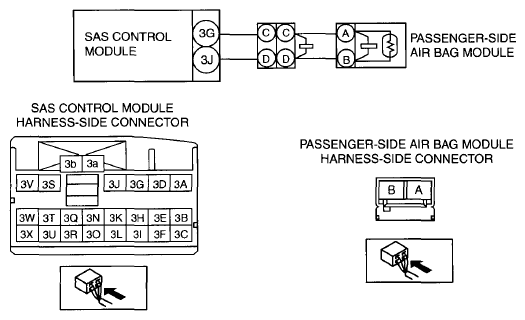

Fig 1: Passenger-Side Air Bag Module Connector End View
G09075939Courtesy of MAZDA MOTORS CORP.
