Liftgate Opener Switch Connector End View

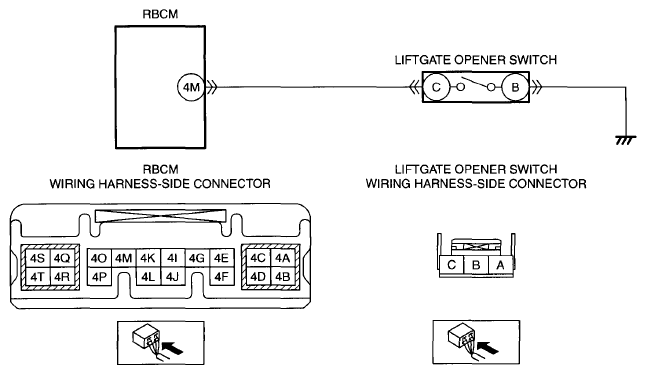

Fig 1: Liftgate Opener Switch Connector End View

G09076488

Courtesy of MAZDA MOTORS CORP.

Fig 1: Liftgate Opener Switch Connector End View

G09077059

Courtesy of MAZDA MOTORS CORP.
